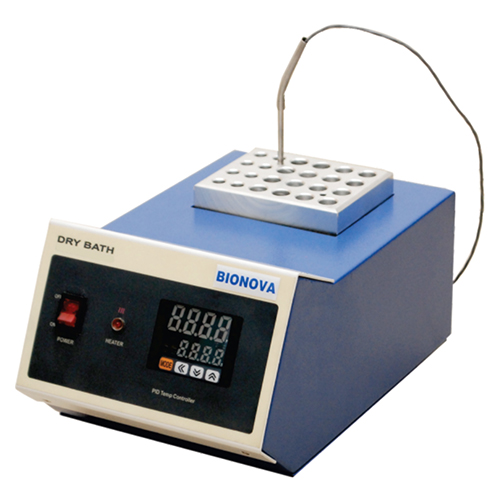

Dry Bath
BN14-DB-120
Dry Bath is designed to uniformly heat the contents of 24 tubes from ambient to 1000c. The microprocessor controls with digital display ensures accurate temperature control and avoids contamination of samples, unlike in a water bath. Dry bath has soft touch keys enabling easy setting of temperature. It is compact, rugged and easy to handle. Each dry bath is provided with a solid anodized aluminiumcombi block (standard) to hold 24 tubes (1.5ml - 8 tubes; 0.5ml - 8 tubes and 5ml - 8tubes). It is housed in recessed chamber. The micro processor controls ensure aluminum block temperature to be within +0.50c of set value. It is designed for continuous us and there is no need to unplug. The aluminium block can be autoclaved to avoid contamination.
| Model | BN14-DB-120 |
|---|---|
| Temperature range | +50c above ambient to 1000c |
| Controller | Digital temperature control |
| Accuracy | +/-0.50c |
| Block Size | 100 x 75 x 38mm |
| Block Capacity | 0.5ml x 8 Tubes 1.5ml x 8 Tubes 2.5ml x 8 Tubes |
| Dimension | W x D x H (165x255x133)mm |
| Input Voltage | 230V A.C. 50 Hz |

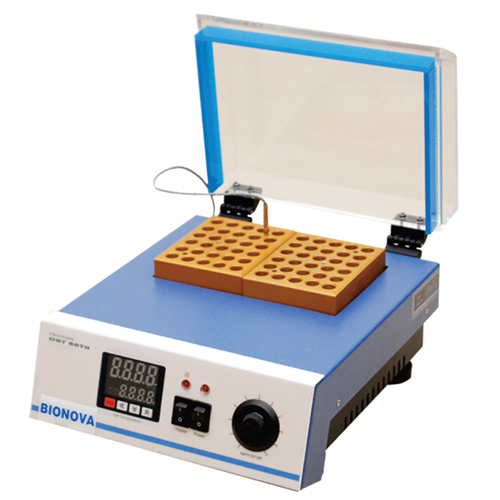

Dry bath with dual block
BN14-PDB-100
| Model | BN14-PDB-100 |
|---|---|
| Temperature Range | +50c above ambient to 1000c |
| Controller | PID Temperature controller |
| Accuracy | +/-0.20c |
| Sensor | PT 100 Sensor |
| Display | Digital Display |
| Block Capacity | 1.5ml / 2ml x 56 tubes |
| Overall Dimension | W x D x H (200x170x105)mm |
| Block | High grade non-porus aluminum |
| Safety Cutoff | Thermostatic safety cutoff |
| Operating Voltage | 230V A.C. 50Hz |
| Special Acrylic lid | To maintain stability for external temperature variation |
