Pulsed Field Electrophoresis System
Pulsed field gel electrophoresis system is mainly used for the separation and analysis of genome DNA, DNA molecular detection and separation of 100bp-6Mb size, the separation is mainly applied to chromosome DNA, field construction, large fragment genomic library and identification of transgenic research analysis, etc.

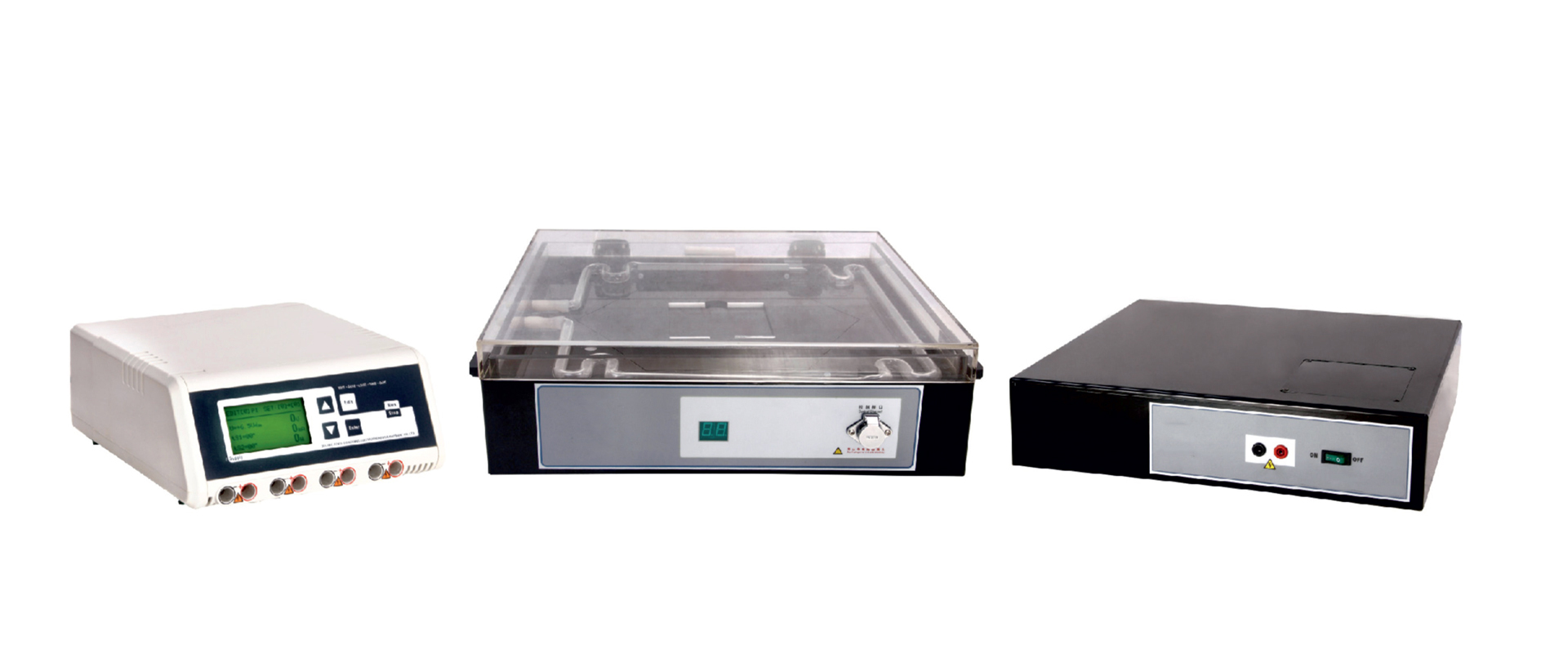

BN15-600MCS-3 Pulsed Field Electrophoresis System
Product formation
Power supply module for Pulsed electric field: Molding shell, touch keys, dual core microprocessor intelligent control, with the program editing and automatic connection function, open cover power-off protection function, overload protection, no-load automatic memory function, the function of automatic shutdown function.
Output mode control allocation module for Pulsed electric field: In the control of CPU intelligent control unit, control of farm output in accordance with the procedure of mode of pulse electric power module, the controlled pulsed field voltage, current, electric field, electric field angle duration, output to a specific sub electrode pulse electrophoresis tank.
Pulsed electrophoresis tank module:
Pulse field gel electrophoresis electrode composed of hexagonal, each side electrode are respectively
provided with 3 independent sub electrode. The pulsed field electrophoresis pulsed field driving power
supply output with pulsed field electrophoresis tank to specific points on the electrode, pulsed field
strength, electric field, electric field angle conversion time meet the experimental pulse field gel
electrophoresis experiments need.
At the same time control buffer cooling cycle unit to realize the constant temperature operation of
the electrophoretic run, ensure the electrophoresis experiment effect.
Constant temperature circulator module: With the buffer refrigeration circulation pump, control electrophoresis temperature effectively, the use of high efficiency, long service life.

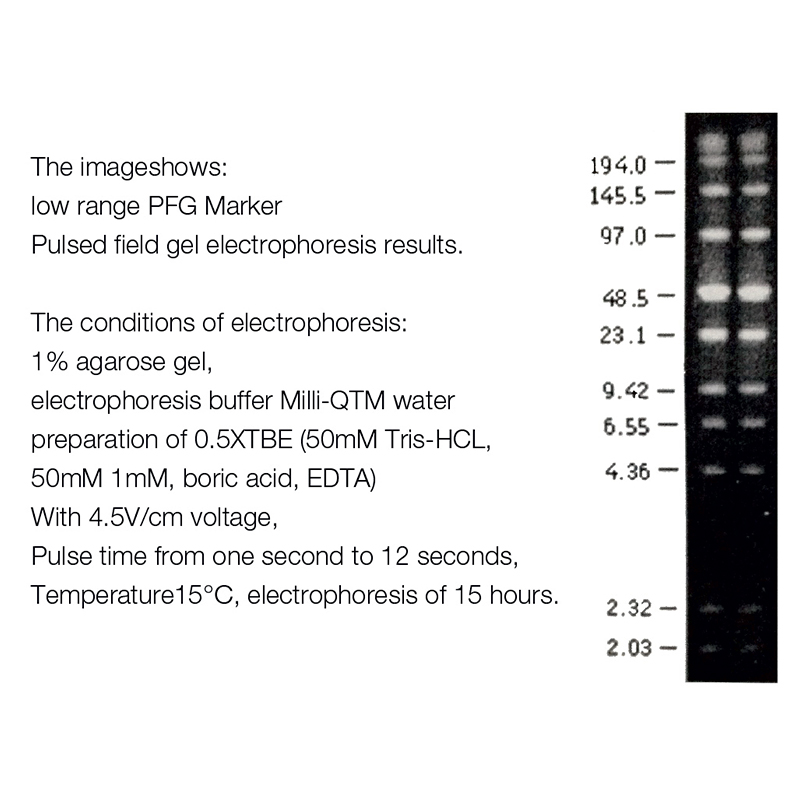

Product features
The isolated fragment: 100bp-6Mb.
Voltage gradient: Maximum of 9.5V/cm, increment 0.1v/cm.
Maximum current: 0.5A.
Maximum power: 300W.
Pulse angle: ±120°, ±180°, Having the field reversal function.
Pulse width: 1~9999s or programmed pulse or 1~20s pulse line increase.
Module timer: 1min~99hours 59min.
Temperature ranges: 10°C~30°C, Accuracy to less than ±0.5°C
Temperature detection: Direct detection of buffer solution temperature, error is less than ±0.1°C.
Cyclic module: inner buffer cyclic system.
Control function: Dual core microprocessor intelligent control, with the program editing and automatic connection function, Open cover power-off protection function, overload protection, no-load automatic memory function, the function of automatic shutdown function.
| Gel area (WxL) | 120x120 (mm) |
| No.of samples | 9~13 |
| Buffer capacity | ~3000 (ml) Powersupply: 280x240x110 (mm) Pulsed tank: 465x445x142 (mm) |
| Volume (LxWxH) | Output control allocation: 465x445x100 (mm) Constant temperature circulator: 350x200x480 (mm) |
| Weight | 85.2 (kg) |
| Parts name | Packing quantity |
| Power supply | 1 |
| Output control allocation | 1 |
| Pulsed Electrophoresis tank | 1 |
| Constant temperature circulator | 1 |
| Gel casting | 1 |
| 48x75 mm Gel tray | 1 |
| Gel pad | 1 |
| 2.0mm thickness 9 wells comb | 2 |
| 2.0mm thickness 13 wells comb | 2 |
| Sample module | 2 |
| Sample exporter | 2 |
| Level | 1 |
| Clip | 2 |
| Circular tube | 3 |
| Horizontal adjustment seat | 4 |
| Control line | 2 |
| Electrical Cables | 1 |
| Power cord | 1 |
