Submarine Electrophoresis Systems & Accessories
The most efficient way to separate DNA fragments in Agarose Gels is by "Submarine" electrophoresis. In this technique, the entire gel is submerged in the buffer. We offer different type of models for different applications like Mini, Midi, Maxi, Maxi XL, Maxi XXL etc.
Selection guide - Submarine Electrophoresis System
| Specification | Dimensions (l x b x h)cm | Gel Size (cm) | No. of Samples | Water Circulation | Cat No. |
|---|---|---|---|---|---|
| Mini Sub System | 20x10x10 | 10x7 | 8 | No | BN14-03-01 |
| Midi Sub System | 24x18x10 | 13x13 | 13 | No | BN14-03-02 |
| Midi Sub Prep System | 37x18x10 | 13x25 | 13 | No | BN14-03-03 |
| Maxi Sub System | 33x23x10 | 20x20 | 26 | No | BN14-03-04 |
| Maxi Sub XL System | 40x33x12 | 30x25 | 99 | Yes | BN14-03-07 |
| Maxi Sub XXL System | 42x34x8 | 20x30 | 120 | Yes | BN14-03-09 |
Submarine Systems

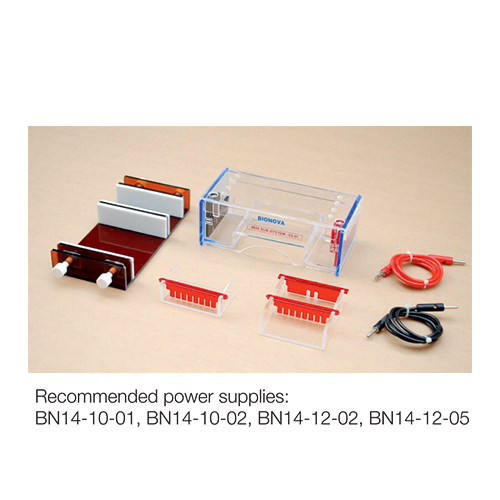

Mini Sub System
BN14-03-01
| Model | Mini sub system |
|---|---|
| Cat No. | BN14-03-01 |
| Principal Materials | Acrylic |
| Inner tank dimension | 190x80x55mm |
| No. of trays | 100x70mm - 1 No. 50x70mm - 2 Nos. |
| No. of combs | 8 well analytical acrylic comb 1.5 mm thick x 2 Nos. 3 Well preparative acrylic comb 3 mm thick - 1 No. |
| No. of gel casting tray | 1 universal |
| Connecting Cord | Red and Black (1 Each) |
| No. of Platinum Electrodes | Red and Black (1 Each) |
| Lid | 1 No. |

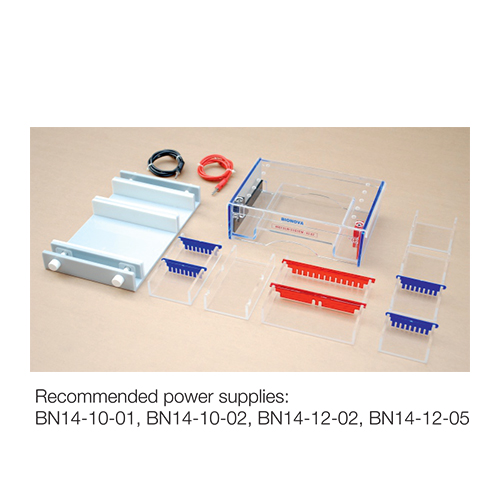

Midi Sub System
BN14-03-02
| Model | Midi sub system |
|---|---|
| Cat No. | BN14-03-02 |
| Principal Materials | Acrylic |
| Inner tank dimension | 215x141x55mm |
| No. of trays | 130x130mm - 1 No. 130x65mm - 2 Nos. 65x60mm - 4 Nos. |
| No. of combs | 13 well analytical acrylic comb 1.5 mm thick x 4 Nos. 8 Well preparative acrylic comb 1.5 mm thick - 1 No. 3 Well preparative acrylic comb 3mm thick x 1 No. |
| No. of gel casting tray | 1 universal |
| Connecting Cord | Red and Black (1 Each) |
| No. of Platinum Red and Black (1 Each) Electrodes | Red and Black (1 Each) |
| Lid | 1 No. |

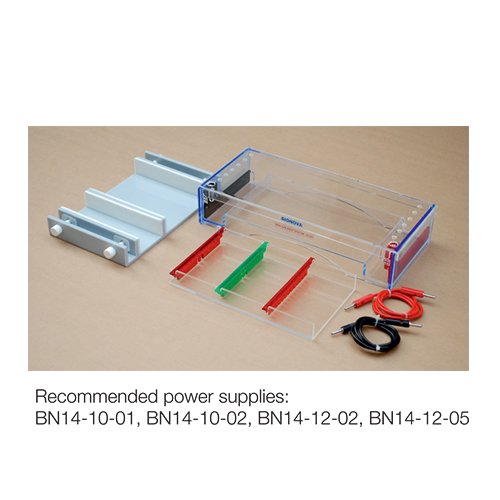

Midi Sub Preparation System
BN14-03-03
| Model | Midi sub preparation system |
|---|---|
| Cat No. | BN14-03-03 |
| Principal Materials | Acrylic |
| Inner tank dimension | 385x143x70mm |
| No. of trays | 250x130mm - 1 No. |
| No. of combs | 13 well analytical acrylic comb 1.5 mm thick x 1 Nos. 3 Well preparative acrylic comb 3 mm thick and 3 well Preparative acrylic comb |
| No. of gel casting tray | 1x250mmx130mm |
| Connecting Cord | Red and Black (1 Each) |
| No. of Platinum Electrodes | Red and Black (1 Each) |
| Lid | 1 No. |

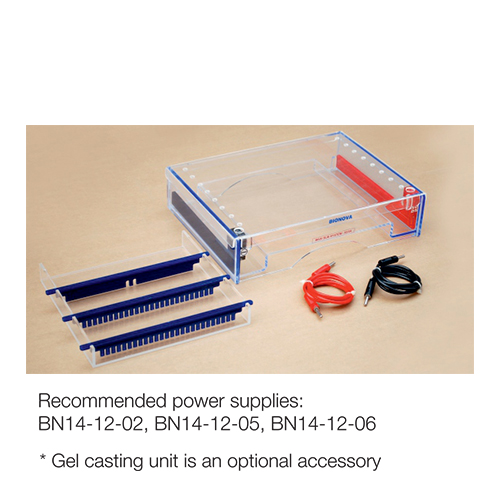

Maxi Sub System
BN14-03-04
| Model | Maxi sub system |
|---|---|
| Cat No. | BN14-03-04 |
| Principal Materials | Acrylic |
| Inner tank dimension | 310x215x68mm |
| No. of trays | 200x200mm - 1 No. |
| No. of combs | 26 well analytical acrylic comb 1.5 mm thick x 2 Nos. 3 Well preparative acrylic comb 3mm thick x 1 No. |
| Connecting Cord | Red and Black (1 Each) |
| No. of Platinum Electrodes | Red and Black (1 Each) |
| Lid | 1 No. |

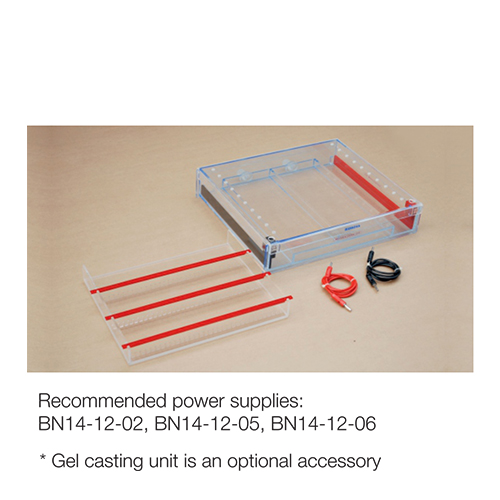

Maxi Sub XL System
BN14-03-07
| Model | Maxi sub XL system |
|---|---|
| Cat No. | BN14-03-07 |
| Principal Materials | Acrylic |
| Inner tank dimension | 355x310x65mm |
| No. of trays | 300x250mm - 1 No. |
| No. of combs | 33 well analytical acrylic comb 2 mm thick x 3 Nos. |
| Connecting Cord | Red and Black (1 Each) |
| No. of Platinum Electrodes | Red and Black (1 Each) |
| Lid | 1 No. |

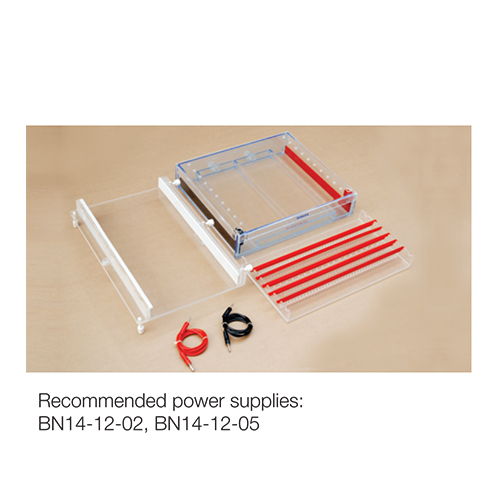

Maxi Sub XXL System
BN14-03-09
| Model | Maxi sub XXL system |
|---|---|
| Cat No. | BN14-03-09 |
| Principal Materials | Acrylic |
| Inner tank dimension | 380x300x50mm |
| No. of trays | 300x200mm - 1 No. |
| No. of combs | 3, 5, 8 well preparative acrylic comb 3 mm thick 1 No. each 16, 20 well analytical acrylic comb 2mm thick - 1 each 40well analytical acrylic comb 2mm thick x 3 No. |
| Gel casting tray | 1 No. with leveling table |
| Connecting Cord | Red and Black (1 Each) |
| No. of Platinum Electrodes | Red and Black (1 Each) |
| Lid | 1 No. |
Ordering information
| MINI SUB SYSTEM | ||
|---|---|---|
| Pl. No. | Product | Pack Size |
| BN14-03-01 | Mini Sub System: Small model gel size 10 x 7 cm (for 8 samples)Accessories for Mini Sub Systems |
1 Unit |
| BN14-03-01-C | Cooling Unit for BN14-03-01 215 mm x 125 mm x 80 mm (1No./pack) | 1 Unit |
| BN14-03-01GS | Gel Scoop for 100 mm x 70 mm Gel (1No./pack) | 1 Unit |
| BN14-03-01UV GS | Gel Scoop for 100 mm x 70 mm Gel (UV-Transparent) (1No./pack) | 1 No. |
| BN14-EL-03-01 | Spare Electrodes (red and black) for BN14-03-01(1 Each) | 1 No. |
| BN14-03-01-01 | Levelling Table for Gel Casting Unit-150 mm x 50 mm (1No./pack) | 1 Unit |
| BN14-03-01-02 | Light Proof Developing Chamber-Small 110 mm x 95 mm (1No./Pack) | 1 Pack |
| BN14-03-01-03 | Gel Running Tray-70 mm 50 mm (2Nos./Pack) | 1 No. |
| BN14-03-01-08 | Gel Casting Tray-70 mm x 50 mm (1No./Pack) | 1 Pack |
| BN14-03-01-03 UV | UV-Transparent Gel Running Tray-70 mm x 50 mm (1No./Pack) | 1 No. |
| BN14-03-01-04 | Gel Running Tray-100 mm x 70 mm (1No./Pack) | 1 No. |
| BN14-03-01-09 | Gel Casting Tray-100 mm x 70 mm (1No./Pack) | 1 No. |
| BN14-03-01-04uv | UV-Transparent Gel Running Tray-100 mm x 70 mm (1No./Pack) | 1 No. |
| BN14-03-01-05 | Comb Stand for BN14-03-01 (1No./Pack) | 1 No. |
| BN14-03-01-06 | Mini 8 Well Analytical Acrylic Comb for BN14-03-01 - 1.5 mm (1No./Pack) | 1 No. |
| BN14-03-01-07 | Mini 3 Well Preparative Acrylic Comb for BN14-03-01 - 3.0 mm (1No./Pack) | 1 No. |
| MIDI SUB SYSTEM | ||
|---|---|---|
| BN14-03-02 | Midi Sub System: Analytical model gel size 13 x 13 cm (for 13 samples) |
1 Unit |
| BN14-03-02GS | Gel Scoop for 130 mm x 130 mm Gel (1No./pack) | 1 No. |
| BN14-03-02UV GS | Gel Scoop for 130mm x 130 mm Gel (UV-Transparent) (1No./pack) | 1 Pack |
| BN14-EL-03-02 | Spare Electrodes (red and black) for BN14-03-02 (1 Each) | 1 No. |
| BN14-03-02-01 | Light Proof Developing Chamber-Analytical (15cm x 13.5cm x 5cm;1No./pack) | 1 Pack |
| BN14-03-02-02 | Gel Running Tray-60 mm x 65 mm (4No./pack) | 1 No. |
| BN14-03-02-10 | Gel Casting Tray-60 mm x 65 mm (1No./pack) | 1 Pack |
| BN14-03-02-02uv | UV-Transparent Gel Running Tray-60 mm x 65 mm (1No./pack) | 1 No. |
| BN14-03-02-03 | Gel Running Tray-30 mm x 60 mm (2No./pack) | 1 No. |
| BN14-03-02-11 | Gel Casting Tray-30 mm x 60 mm (1No./pack) | 1 No. |
| BN14-03-02-03uv | UV-Transparent Gel Running Tray-130 mm x 60 mm (1No./pack) | 1 No. |
| BN14-03-02-04 | Gel Running Tray - 130 mm x 130 mm (1No./pack) | 1 No. |
| BN14-03-02-12 | Gel Casting Tray - 130 mm x 130 mm | 1 No. |
| MIDI SUB PREP SYSTEM | ||
|---|---|---|
| BN14-03-03 | Midi Sub Prep System: Preparative model gel size 13cm x 25cm (for 13 samples) | 1 Unit |
| BN14-03-02-04uv | UV-Transparent Gel Running Tray-130 mm x 130 mm (1No./pack) | 1 No. |
| BN14-03-02-05 | Mini 8 Well Analytical Acrylic Comb for BN14-03-02 -1.5 mm (1No./pack) | 1 No. |
| BN14-03-02-06 | 13 Well Analytical Acrylic Comb for BN14-03-02 - 1.5 mm (1No./pack) | 1 No. |
| BN14-03-02-07 | 3 Well Preparative Acrylic Comb for BN14-03-02 - 3.0 mm (1No./pack) | 1 No. |
| BN14-03-02-08 | 3 Well Preparative Acrylic Comb for BN14-03-02 - 6.0 mm (1No./pack) | 1 No. |
| BN14-03-01-05 | Comb Stand for BN14-03-02 (1No./pack) | 1 No. |
| MIDI SUB PREP SYSTEM | ||
|---|---|---|
| Pl. No. | Product | Pack Size |
| BN14-EL-03-03 | Spare Electrodes (red and black) for BN14-03-03 (1 Each) | 1 Set |
| BN14-03-03-02 | Gel Running Tray-250 mm 130 mm (1No./pack) | 1 No. |
| BN14-03-03-08 | Gel Casting Tray-250 mm x 130 mm (1No./pack) | 1 No. |
| BN14-03-03-02uv | UV-Transparent Gel Running Tray-250 mm x 130 mm (1No./pack) | 1 No. |
| BN14-03-02-06 | 13 Well Analytical Acrylic Comb for BN14-03-02 - 1.5 mm (1No./pack) | 1 No. |
| BN14-03-01-05 | Comb Stand for BN14-03-01 (1No./pack) | 1 No. |
| BN14-CC-1 | Connecting Cord Red and Black (1 each) | 1 No. |
| BN14-CC-2 | Adapter Set (2mm/4mm) for Imported Power Supply (1No./pack) imported power packs | 1 No. |
| MAXI SUB SYSTEM | ||
|---|---|---|
| BN14-03-04 | Maxi Sub System Large model Gel Size 20 cm x 20 cm (for 26 samples) | 1 Unit |
| BN14-EL-03-04 | Spare Electrodes (red and black) for BN14-03-04 - (1 Each) | 1 Set |
| BN14-03-04-01 | Light Proof Developing Chamber-Large(22cm x 21cm; 1No./pack) | 1 No. |
| BN14-03-04-02 | Gel Running Tray-200 mm x 200 mm (1No./Pack) | 1 No. |
| BN14-03-04-07 | Gel Casting Tray-200 mm x 200 mm (1No./Pack) | 1 No. |
| BN14-03-04-02UV | UV-Transparent Gel Running Tray-200 mm x 200 mm (1No./Pack) | 1 No. |
| BN14-03-04-03 | 26 Well Analytical Acrylic Comb for BN14-03-04 - 1.5 mm (1No./Pack) | 1 No. |
| MAXI SUB XL SYSTEM | ||
|---|---|---|
| BN14-03-07 | Maxi Sub XL System: Extra large model (Custom built) Gel Size 30 cm x 25 cm (for 33 x 3 =99 samples) with inbuilt comb stand Multi Channel Pipette Compatible |
1 Unit |
| BN14-EL-03-07 | Spare Electrodes (red and black) for BN14-03-07 (1 Each) | 1 No. |
| BN14-03-07-01 | Light Proof Developing Chamber-Large (37cm x 26cm;1No./Pack) | 1 No. |
| BN14-03-07-02 | Gel Running Tray with Comb- 300mm 250 mm (1No./Pack) | 1 No. |
| BN14-03-07-03 | UV-Transparent Gel Running Tray-300 mm x 250 mm (1No./Pack) | 1 No. |
| BN14-03-07-04 | 33 Well Analytical Acrylic Comb for BN14-03-07 - 2.0 mm (1No./Pack) | 1 No. |
| BN14-03-07-06 | Levelling Table with Screws and Spirit Level 320 mm x 300 mm (1No./Pack) | 1 No. |
| MAXI SUB XXL SYSTEM | ||
|---|---|---|
| BN14-03-09 | Very Large Model (for 40 x 3 = 120 samples) Gel Size 20 cm x 37 cm with inbuilt comb stand Multi Channel Pipette Compatible combs 3, 5, 8, 16, 20, 40 x 3 wells |
1 Unit |
| BN14-03-09-01 | 3, 5, 8, 16, 20 Well Acrylic Combs (1No. Each) and 40 Well Acrylic Comb (3 Nos) for BN14-03-09 | 1 No. |
