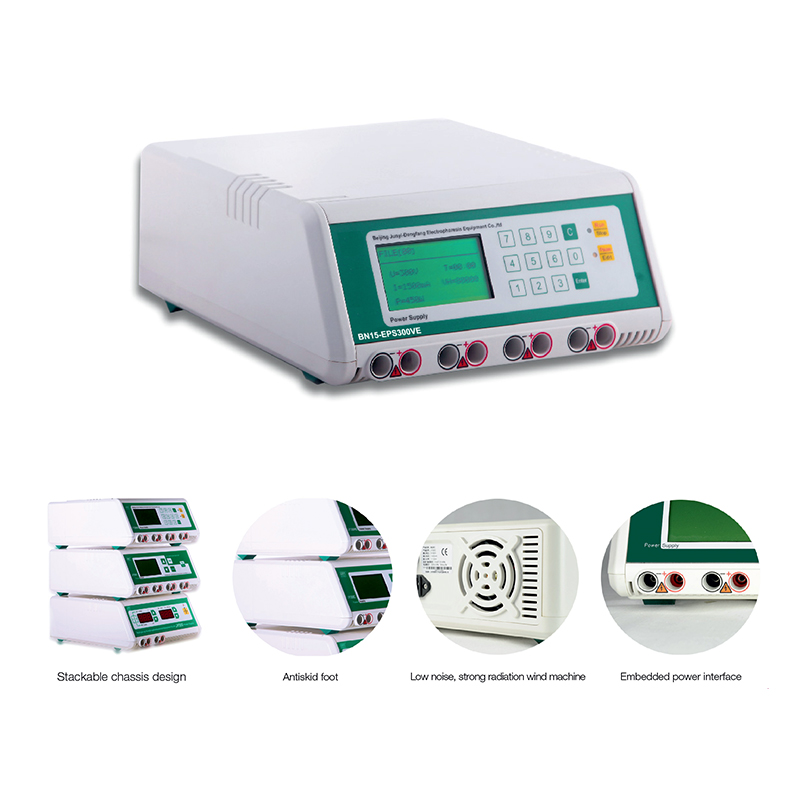

BN15-EPS series Universal Power Supply
BN15-EPS series universal power supply comprise 10 models, including: BN15-200VC, BN15-300VC, BN15-300VCH, BN15-600C, BN15-EPS300VE, BN15-600V, BN15-600VE, BN15-1000V, BN15-1600V, BN15-3000V, BN15-5000V, BN15-10000V, the maximum output voltage varies from 200V to 10000V, can widely cover most electrophoresis experiments, Bionova can provide different types of power supplies for experiments with different uses.
BN15-EPS series universal power supply is based on the BN15-CPS series universal power supply on the optimization of control program, expansion the product function, which simplifies the operation, and greatly improve the performance of the electrophoresis power supply.
1. Molding shell, touch keys, dual core microprocessor intelligent control
2. 0-9 digital button, make the operation more simple and convenient
3. Indicate the preset value and the actual output value at the same time
4. It can store 100 electrophoresis methods
5. With automatic memory function
6. With step-by-step control function (editable 10 groups,
each group of up to make 10 program automatic connection operation)
7. With a pause control function (including real-time tuning)
8. With standard, timing, V-hr, step-by-step operation function
9. With constant voltage, constant current, constant power, misoperation,
fault intelligent prompt functions
10. Automatic detection of no-load, over-load, short circuit, rapid resistance change,
ground leak and system overheating.
| Type of Output: | Constant-Voltage, Current or Power |
|---|---|
| Increment: | 1V, 1mA, 1W |
| Timer Range: | 1min~99hr, 59min |
| V-hr Range: | 1~99999V-hr/ Increment 1V-hr |
| Display: | LCD display with backlight |
| Output jacks: | Four sets of output jacks |
Technical specifications for BN15-EPS series Universal Power Supply
| BN15-EPS200V | BN15-EPS300V | BN15-EPS300VE | BN15-600V | BN15-600VE | BN15-1000V | BN15-1600V | BN15-3000V | BN15-5000V | BN15-10000V | |
|---|---|---|---|---|---|---|---|---|---|---|
| Voltage range | 5~200 V | 5~300 V | 5~300 V | 10~600 V | 10~600 V | 30~1000 V | 20~1600 V | 20~3000 V | 20~5000 V | 20~10000 V |
| Current range | l~2000mA | l~400mA | l~1500mA | l~500mA | 1~l000mA | l~500mA | 1~l00mA | l~400mA | l~200mA | 1~3500 µA |
| Power range | 1~200 W | l~120W | 1~450 W | 1~300 W | 1~300 W | 1~300 W | l~160W | 1~400 W | 1~l00W | l~35W |
| Type of control | Constant V, Constant I and Constant P | Constant V, Constant I and Constant P | Constant V, Constant I and Constant P | Constant V, Constant I and Constant P | Constant V, Constant I and Constant P | Constant V, Constant I and Constant P | Constant V, Constant I and Constant P | Constant V, Constant I and Constant P | Constant V, Constant I and Constant P | Constant V, Constant I and Constant P |
| Display type | LCD screen with backlight | LCD screen with backlight | LCD screen with backlight | LCD screen with backlight | LCD screen with backlight | LCD screen with backlight | LCD screen with backlight | LCD screen with backlight | LCD screen with backlight | LCD screen with backlight |
| Output jack | Four sets | Four sets | Four sets | Four sets | Four sets | Four sets | Four sets | Four sets | Two sets | Two sets |
| Storage function | Store 100 methods | Store 100 methods | Store 100 methods | Store 100 methods | Store 100 methods | Store 100 methods | Store 100 methods | Store 100 methods | Store 100 methods | Store 100 methods |
| Programming method | Can store 10 methods, each up to 10 steps | Can store 10 methods, each up to 10 steps | Can store 10 methods, each up to 10 steps | Can store 10 methods, each up to 10 steps | Can store 10 methods, each up to 10 steps | Can store 10 methods, each up to 10 steps | Can store 10 methods, each up to 10 steps | Can store 10 methods, each up to 10 steps | Can store 10 methods, each up to 10 steps | Can store 10 methods, each up to 10 steps |
| Timing function | 1min-99h59min | 1min-99h59min | 1min-99h59min | 1min-99h59min | 1min-99h59min | 1min-99h59min | 1min-99h59min | 1min-99h59min | 1min-99h59min | 1min-99h59min |
| V-hr function | Yes, 1~99999 V-hr | Yes, 1~99999 V-hr | Yes, 1~99999 V-hr | Yes, 1~99999 V-hr | Yes, 1~99999 V-hr | Yes, 1~99999 V-hr | Yes, 1~99999 V-hr | Yes, 1~99999 V-hr | Yes, 1~99999 V-hr | Yes, 1~99999 V-hr |
| Pause control function | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Power recovery function | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional |
| Automatic memory function | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Automatic shutdown function | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Intelligent prompt functions | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Non-proliferation field function | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional |
| Temperature Detection function | No | No | No | No | No | No | No | No | Yes | Yes |
| Safety Performance | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Molding machine casing | Yes | Yes | Yes | Yes | No | No | No | No | No | No |
| Volume (L x W x H) | 280x237x118 (mm) | 280x237x118 (mm) | 280x237x118 (mm) | 280x237x118 (mm) | 263x275x125 (mm) | 263x275x125 (mm) | 263x275x125 (mm) | 263x275x125 (mm) | 368x255x133 (mm) | 370x255x133 (mm) |
| Weight | 3.2 kg | 3.2 kg | 3.2 kg | 3.2 kg | 1.4 kg | 4.6 kg | 4.4 kg | 4.8 kg | 10.6 kg | 12.0 kg |
