2D Gel Eletrophoresis
Two dimensional electrophoresis is a combination of isoelectric focusing electrophoresis and SOS-PAGE, namely the first isoelectric focusing electrophoresis (according to pl separation), then SOS-PAGE (according to molecular size), after electrophoresis graph coloring obtained is a two-dimensional distribution of protein map.

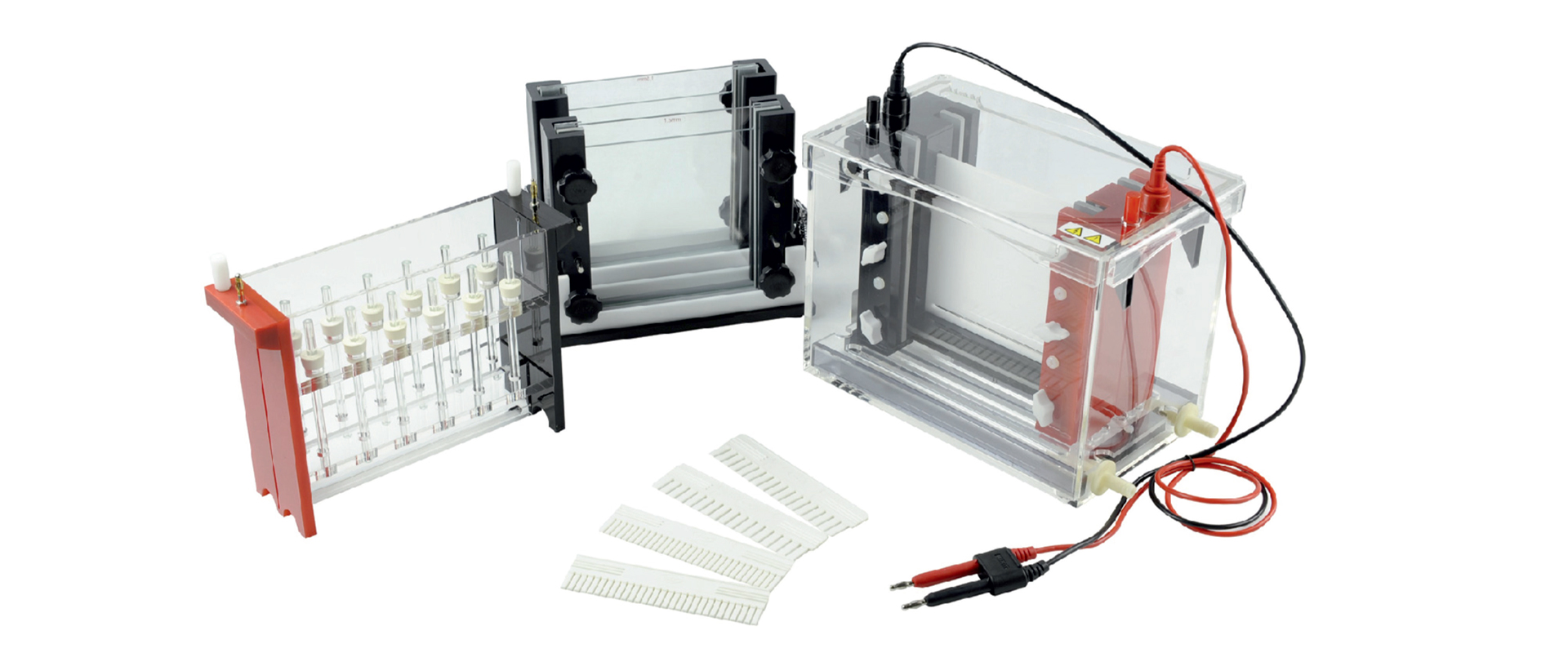

BN15-SX3 2D Gel Electrophoresis
1. Does not require special high current electrophoresis apparatus, normal electrophoresis
instrument can meet the demand of the experiment.
2. The 1D and 20 is separate, can become independent electrophoresis tank
3. Can pour in cooling water to keep a cool environment.
4. With a special gel casting, making the gel casting easy and simple.
5. Switching off when opening the lid, safe electrical cables and made the operation
simpler.
6. Auto-switch-off when the lid is moved.
| ID Tube Gel Electrophoresis: | |
| length of Glass tube | 120 (mm) |
| Gel diameter | 1.0, 2.0 (mm) |
| 2D Vertical Electrophoresis | |
| Gel size (WxL) | 143x139 (mm) |
| Gel thickness | 1.0 (mm), 2.0 (mm) |
| Gel Amount | 2 (pieces) |
| Sample volume | 17~58 |
| Buffer Volume | ~2500 (ml) |
| Volume (LxWxH) | 460x230x400 (mm) |
| Weight | 13.2 (kg) |
| Parts name | Packing quantity |
|---|---|
| Electrophoresis Tank | 1 |
| Inner core of 1D | 1 |
| Inner core of 2D | 1 |
| Notched glass plates | 4 |
| 1mm bonded glass spacer | 2 |
| 2mm bonded glass spacer | 2 |
| 1mm thick 21 wells comb | 2 |
| 2mm thick 21 wells comb | 2 |
| 1mm thick 29 wells comb | 2 |
| 2mm thick 29 wells comb | 2 |
| 1mm diameter glass tube | 12 |
| 2mm diameter glass tube | 12 |
| Rubber plug | 24 |
| Gel casting | 1 |
| Silica gel tube | 3 |
| Electrical Cables | 1 |
