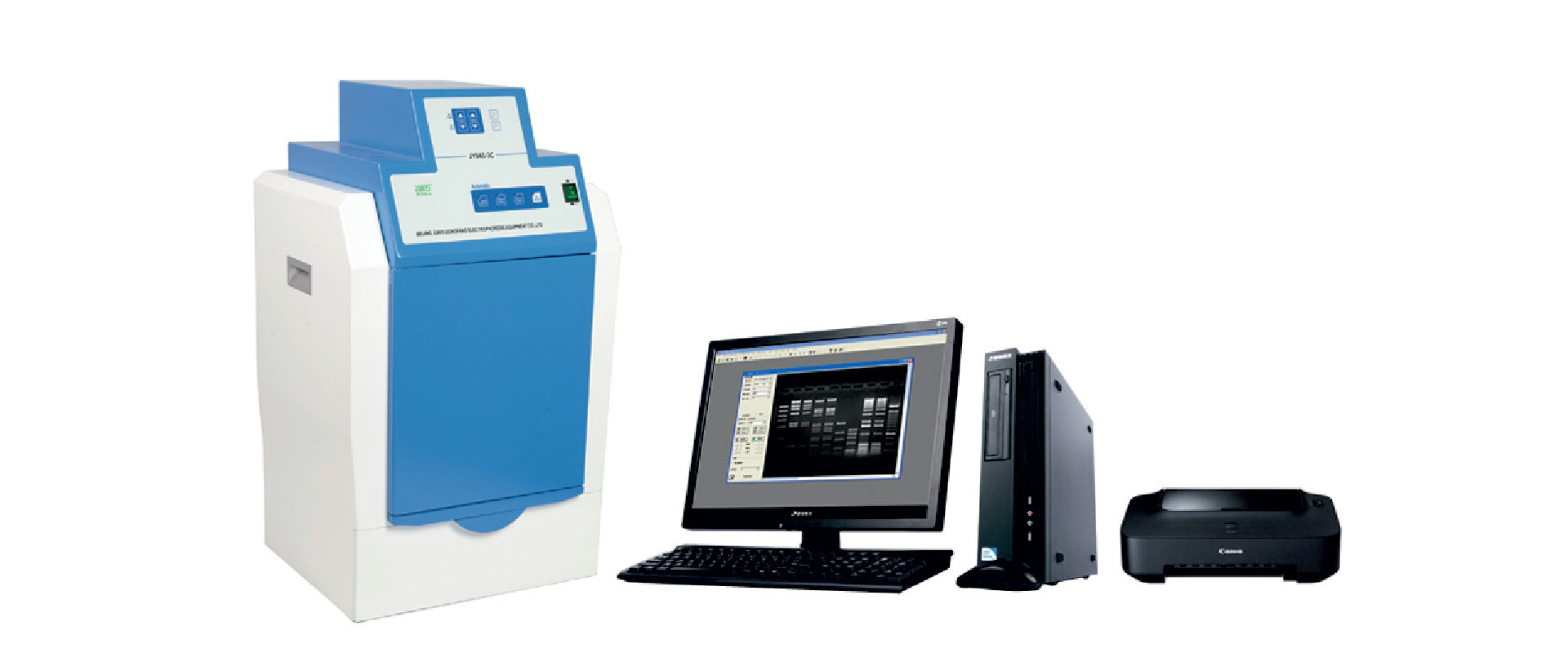

BB series Gel Document Imaging System is intend for band observation after electrophoresis running. DNA or other bimolecular cannot be seen under natural light, but with the help of UV light and high resolution CCD, DNA or other bimolecular can be visualized with a fiuorescent stain such as ethidium bromide. By using the JY series gel document imaging system, the electrophoresis band is analyzed by using software technology and the band picture can be zoomed in or zoomed out according to user's requirements.
1. CCD with lower lux and high-resolution, easy to get dim stripes and real-time browse,
whole-screen display and simple to operate:
2. Six time zoom lens and simple to enlarge and shrink gel photos.

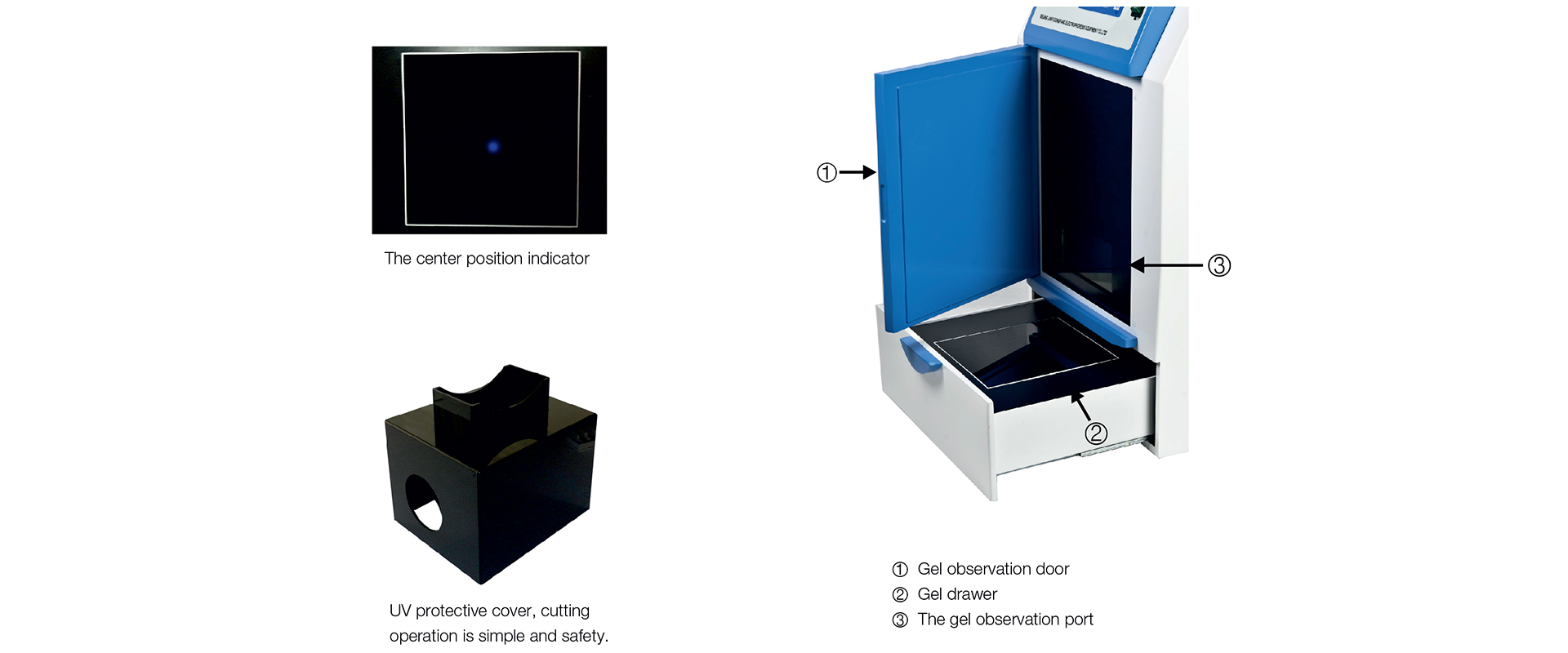

3. The center position indicator, which can ensure the gel is placed in the center position.
4. Intelligent control box:
5. You can realize the control of the zoom, focus, aperture, UV light and white light
through panel key.
6. Safety function for your eyes that automatically shuts down the UV light when the door is opened
and reactivates the UV light when the door is shut.
7. Timed shut down: The UV light protection system automatically shuts down the lights after 15
minutes to maximize the life of lamp and vitreous.
8. The zoom lens is protected with RS232 interface.
9. Drawer-style gel platform, convenient to observe, operate, and cutting gel.
10. Transferring plate changes UV-light into white-light.
11. Using a multi-layer gel-filter effectively filters background noise.
12. You can realize the control of the zoom, focus, aperture, UV light and white light
through computer mouse.
13. Regular and reliable system convenient to maintain and exchange parts.
| BN15-04S-3C | BN15-04S-3E | |
| Effective pixels | 1280x1024 | 2560x1920 |
|---|---|---|
| Pixel density | 10 bit | 10 bit |
| Pixel size | 5.4x5.4 (um) | 5.4x5.4 (um) |
| Resolution | 1.4 megapixels | 5.0 megapixels |
| Signal to noise ratio | greater than equal to 56db | greater than equal to 56db |
| Sensitivity | Can detect the double chain DNA of EB staining below 20pg | Can detect the double chain DNA of EB staining below 20pg |
| Camera | low illumination and high resolution digital CCD | low illumination and high resolution digital CCD |
| Zoom lens | F=1:1.2, 2/3 inch 6 times zoom lens | F=1:1.2, 2/3 inch 6 times zoom lens |
| Filter | 590 (nm) | 590 (nm) |
| UV light transmission area(WxL) | 250x200 (mm) | 250x200 (mm) |
| Visible light transmittance area(WxL) | 250x210 (mm) | 250x210 (mm) |
| Transmission UV wavelength | 302 (nm) | 302 (nm) |
| Reflectance UV wavelength | 254, 365 (nm) | 254, 365 (nm) |
| Transmission UV lamp power | 302nm (8W) | 302nm (8W) |
| Reflectance UV lamp power | 254nm (11W), 365nm (11W) | 254nm (11W), 365nm (11W) |
| Volume (LxWxH) | 470x405x820 (mm) | 470x405x820 (mm) |
| Weight | 29.0 (kg) | 29.0 (kg) |

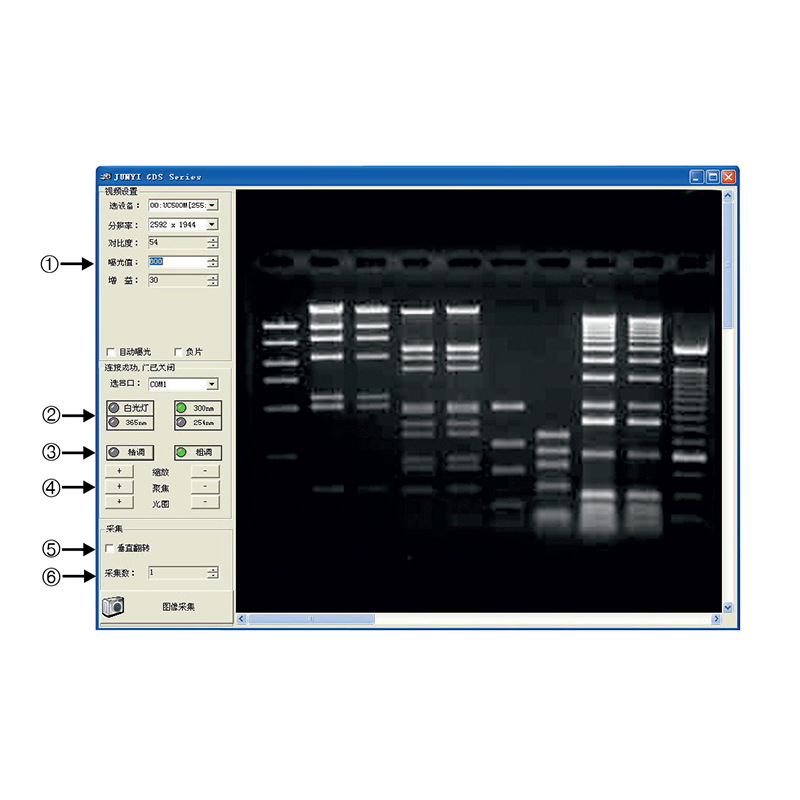

1. Real time image preview and photograph
1. The exposure value adjustment: according to the different experimental conditions, automatically or manually adjust the exposure value, can achieve the best effect of exposure.
2. Light control button: You can control the white light and UV lamp through the computer.
3. Fine and coarse adjustment button: Users can choose the regulation speed;
4. Zoom, focus, aperture adjusting button: you can adjusted the image size, focal length and the aperture by computer.
5. Flip vertical button: according to the need to flip the image;
6. Image capture button: you can take and save the image to a pictures.

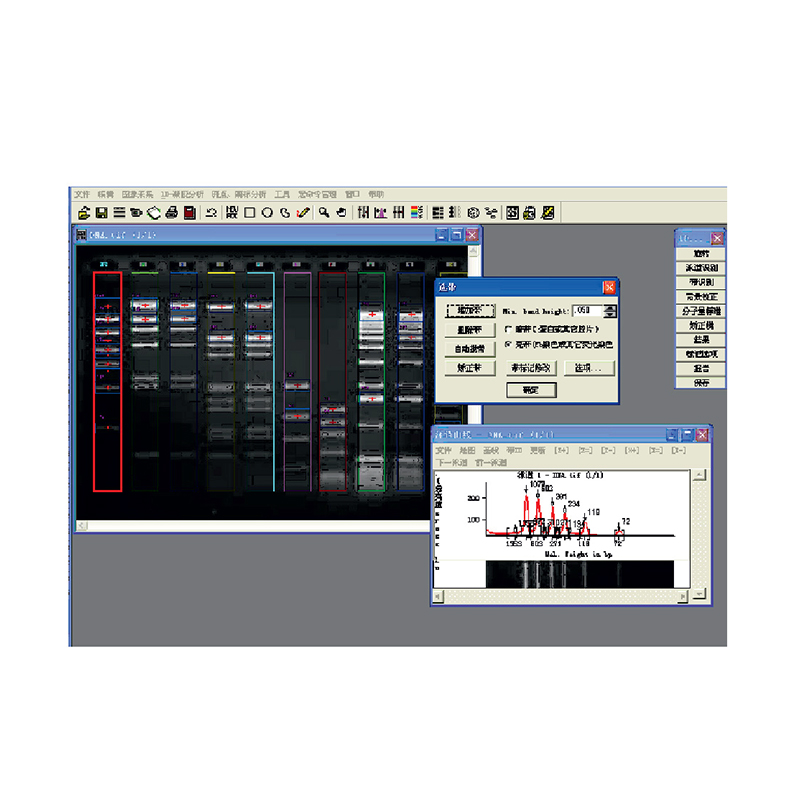

2. Image analysis
1. You can recognition the lane automatically or manually.
2. You Can automatically and manually on the colony density, dot hybridization analysis, cloning count.
3. You can calculation and comparison the Molecules of nucleic acid, protein content, optical density, mobility and pH value and percentage content.
4. You can export all kinds of experimental report to a text or Excel format file and print.
3. Image processing
1. You can assist data shows, and provides text, arrows, graphics and other annotation tool for misoperation, unlimited undo data for protection.
2. You can adjust the image of rotate, zoom, color, cut, brightness, grayscale, and contrast.
| Parts Name | Packing Quantity |
|---|---|
| Mainframe | 1 |
| UV protective cover | 1 |
| Transferring plate | 1 |
| Control line | 1 |
| USB line | 1 |
| 5A insurance tube | 2 |
| Power cord | 1 |
