Nucleic Acid Sequencing
The BB-series Nucleric Acid sequencing products are designed for AFLP analysis, different display, SSR and SSCP research. They are fit for heteroduplex, DNA foot printing, RNase protection test, S1 Nucleic acid enzyme figures and Primer Extension experiments.
BB-series Nucleric Acid sequencing products comprises 3 models, including: BN15-CX1 B, BN15-CX2B, and BN15-CX3B.
1. Simple operation, only four fastening knobs needed.
2. Can save 50% buffer compare with traditional tanks.

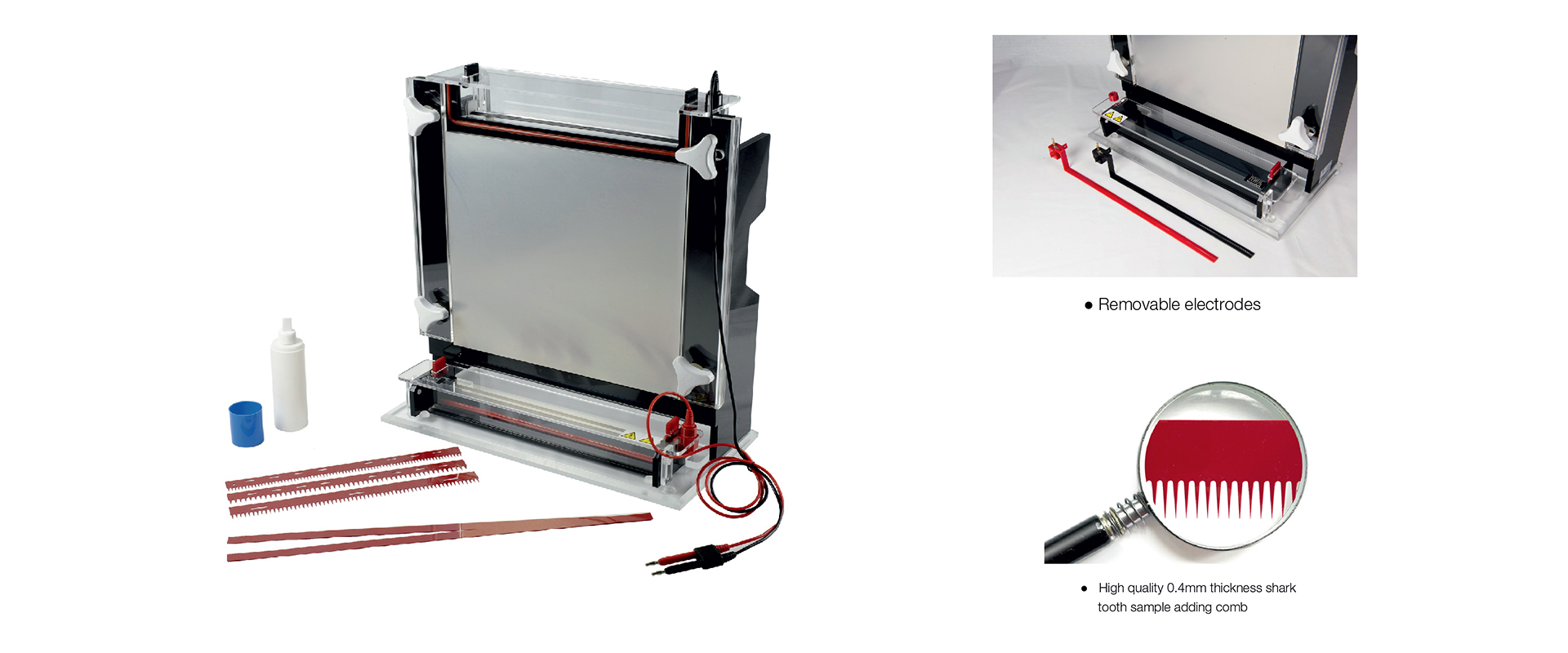

3. Removable electrodes make maintance and replacement more easy and quick.
4. Special heat dissipation processed aluminum plate firmly clings
to the gel plates, which effectively guarantees the gel temperature is even, ensures the
electrophoresis trip are straighter.
5. Auto-switch-off when the lid is moved.
| BN15-CX1B | BN15-CX2B | BN15-CX3B | |
|---|---|---|---|
| Glass plate area (WxL) | 200x450 (mm) | 350x450 (mm) | 350x350 (mm) |
| Gel area (WxL) | 180x420 (mm) | 330x420 (mm) | 330x320 (mm |
| Gel thickness | 0.4 (mm) | 0.4 (mm) | 0.4 (mm) |
| Amount of gel | 1 (piece) | 1 (piece) | 1 (piece) |
| No. of samples | 32, 39 | 50, 62, 74, 100 | 50, 62, 74, 100 |
| Buffer capacity | ~500 (ml) | ~750 (ml) | ~750 (ml) |
| Volume (LxWxH) | 310x230x500 (mm) | 455x230x500 (mm) | 460x230x400 (mm) |
| Weight | 11.0 (kg) | 16.5 (kg) | 13.2 (kg) |
