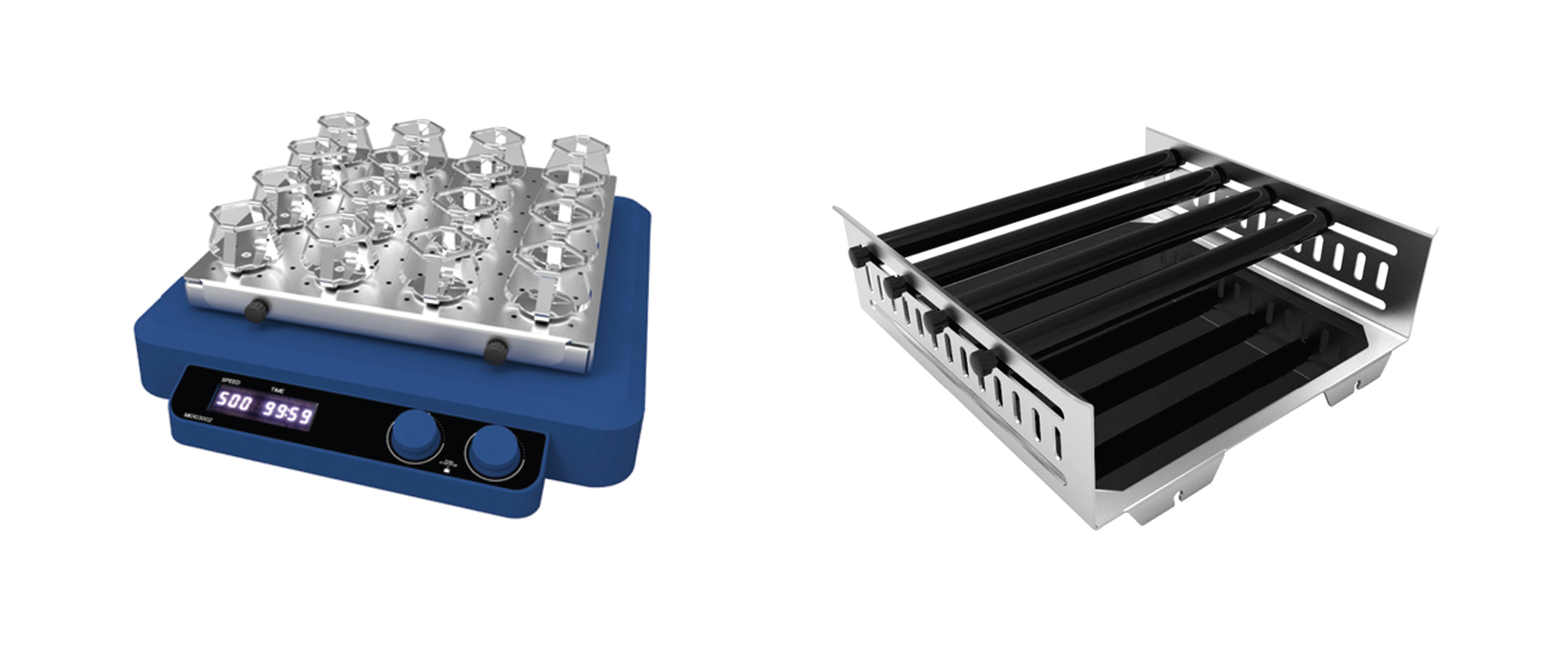

BIONOVA Laboratory 7.5kg Capacity Orbital Shaker with Micro-computer Control
Our shakers are designed with exceptional innovation for the most demanding environments and make sure the reliability, flexibility and simplicity.
Features
1. Max. load capacity (with platform) is 7.5kg
2. Support orbital and linear shaking
3. Fashion design of high strength tempered glass on the front panel
4. LED display for easy-reading of speed and time simultaneously
5. Digital speed control system and micro-computer control make stable running and
prevent sample splashing.
6. Brushless DC motor is maintenance-free and provides long service life
7. Over-load and over-speed detection and protection
8. Supports both orbital shaking and linear shaking and easy to switch the shaking mode
9. Continuous operation and timed operation in range of 0-99h59min are available
10. Automatic alarm by time controller allows for unsupervised operation
11. A wide choice of platforms for various applications.
| Model | BN15-0103002 |
|---|---|
| Shaking motion | Orbital / Linear |
| Motor type | Brushless DC motor |
| Max. load capacity | |
| (with platform) [kg] | 7.5 |
| Orbital diameter [mm] | 5 |
| Speed display | LED |
| Speed range [rpm] | 30-500 |
| Time display | LED |
| Time range | 0-99H59Min |
| Operation type | Continuous / timed operation |
| Permissible ambient temperature [°C ] | 5-40 |
| Permissible relative humidity | 80% |
| Protection class acc. to DIN EN60529 | IP21 |
| Voltage [VAC] | 100-240 |
| Frequency [Hz] | 50/60 |
| Power [W] | 40 |
| Dimensions [W x D x H, mm] | 450 X 400 X 105 |
| Weight [kg] | 11 |
