Ovens
Hot Air Oven
BN14-HO-50100
Hot air ovens are electrical devices used in sterilization. The oven uses dry heat to sterilize articles. They can be operated from above ambient to 1000c. There is a thermostat controlling the temperature. These are digitally controlled to maintain the temperature. Their double walled insulation keeps the heat in and conserves energy, the inner layer being a poor conductor and outer layer being metallic. There is also an air filled space in between to aid insulation. An air circulating fan helps in uniform distribution of the heat.
| Model | BN14-HO-50100 |
|---|---|
| Temperature range | Above ambient to 1000c |
| Controller | Digital temperature controller PID type |
| Accuracy | +/- 0.20C |
| Capacity | 501tr |
| Circulation | Blower Assembly for uniform temperature |
| Tray | Perforated SS tray (2nos) adjustable |
| Insulation | Double wall insulation |
| Inside chamber | Stainless Steel |
| Outer chamber | Aluminum powder coated |
| Inner Dimension | W x D x H (14x14x16) inches |
| Safety | Thermostatic Safety cutoff |
| Operating Voltage | 230V A.C. 50 Hz |

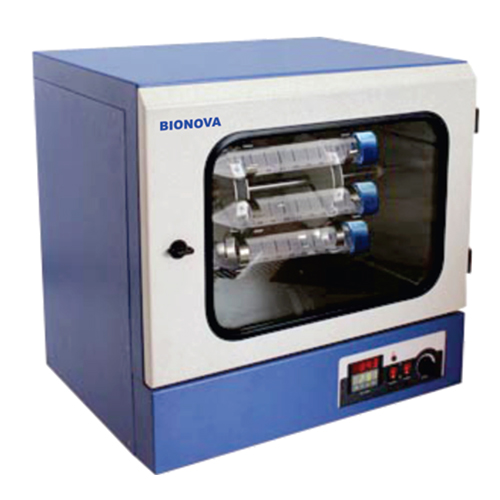

Hybridization Oven
BN14-HYB-0-100
Hybridization oven is made out of Heavy gauge MS with powder coated body. Temperature is maintained from above ambient to 600c with an accuracy 0.50c with the help of powerful centrifugal blower. D.C. motor is used to get accuracy in speed and for low noise levels. Speed can be controlled from 10 rpm to 60 rpm with an accuracy of 2 rpm. Front door is made out of acrylic with locking system.
| Model | BN14-HYB-0-100 |
|---|---|
| Temperature range | Above ambient to 700c |
| Controller | Digital temperature controller PID type |
| Accuracy | +/- 0.50C |
| Circulation | Pump for uniform temperature |
| Speed | 0-100 rpm |
| Inside chamber | SS 304 G |
| Inner Dimension | W x D x H (14x10x12) inches |
| Outer Dimension | W x D x H (16x14x14) inches |
| Operating Voltage | 230V A.C. 50Hz |
