Stirrers

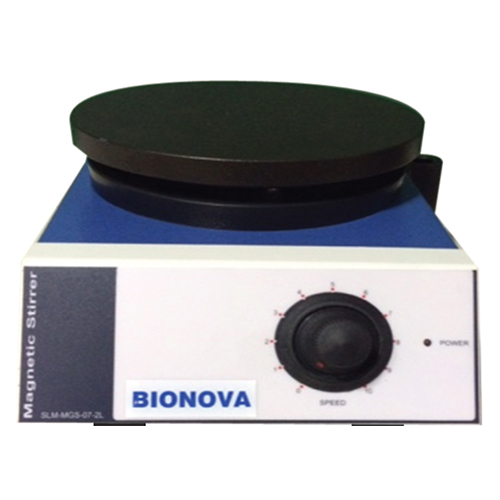

Magnetic Stirrer with Teflon Coating Platform
BN14-MGS-04-TF
Magnetic stirrers with advanced technology. The accurate speed control assuring trouble free continuous operation. The free spinning rotating magnet spine a Teflon stirring bar (not a standard accessory) to stir liquids in open and closed vessels. The solid state feedback control system maintains excellent speed stability despite viscosity or volume changes or voltage fluctuations. We manufactures different type of stirrers for different application like 10 ltrs stirrers for more samples, Magnetic stirrers with hot plate, digital hot plate with magnetic stirrer for temperature related applications.
| Model | BN14-MGS-04-TF |
|---|---|
| Speed | 2000 rpm |
| Magnet | High power magnet |
| Capacity | 2L |
| Control | Variable regulated speed |
| Motor | AC Motor |
| Platform size | 162 x 175 mm |
| Platform | Teflon Coating |
| Overall dimension | W x D x H (163 x 175 x 126)mm |
| Input voltage | 220v ac@ 50 Hrtz |

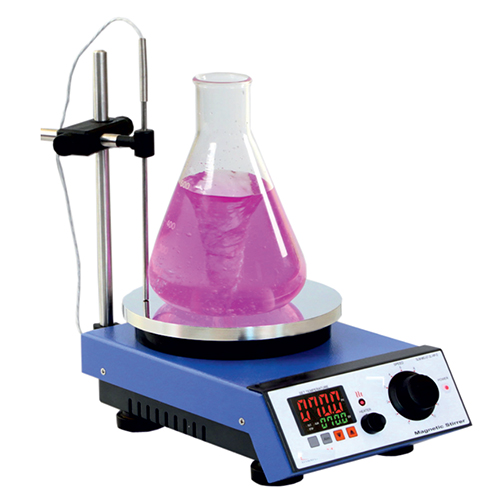

Magnetic Stirrer with Hot Plate Teflon Coating Platform
BN14-MGS-2L-TF
Magnetic stirrers having a inbuilt hot plate, where in the temperature can be controlled from above ambient to 1600c at an accuracy of +50c with the help of imported thermostat. Clearly visible inbuilt digital display with timer and temperature indication. Strip heaters ensure that temperature uniformity is maintained evenly across the platform. Working table is made out 1.8mm stainless steel sheet to with stand high temperature.
| Model | BN14-MGS-2L-TF |
|---|---|
| Speed | 2000 rpm |
| Temperature Range | Above Ambient to 200°C |
| Temperature Controller | Digital temperature controller |
| Magnet | High power magnet |
| Capacity | 2L |
| Control | Variable regulated speed |
| Motor | AC Motor |
| Platform size | 162 x 175 mm |
| Platform | Teflon Coating |
| Overall dimension | W x D x H (163 x 175 x 126)mm |
| Input voltage | 220v ac@ 50 Hrtz |
| Supporting Rod optional |

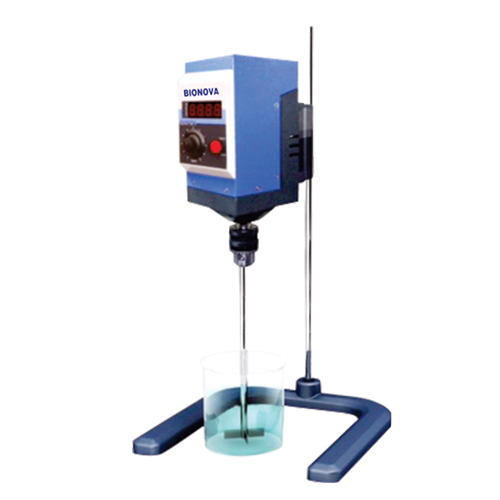

Digital Overhead Mechnical Stirrer
BN14-OHS-1000-D
Bionova Instruments manufactures and supplies overhead magnetic stirrer. The company provides overhead magnetic stirrers in different models keeping in mind the specific needs of users. These overhead magnetic stirrer are manufactured from durable raw materials, which ensures long life and minimum maintenance.
| Model | BN14-0HS-1000-D |
|---|---|
| Speed Regulation | Regulated feedback system |
| Speed | 1500 rpm |
| Control | Variable DC Control |
| Display | LED Display |
| Capacity | 10 ltrs |
| Motor Adopter | SS Chuck for inserting Rod |
| Chuck range max dia | 10mm dia |
| Motor | High torque BLDC motor |
| Motor Holder | SS Rod to hold the 12x300mm |
| Length Input working voltage | 230V A.C. 50Hz |
