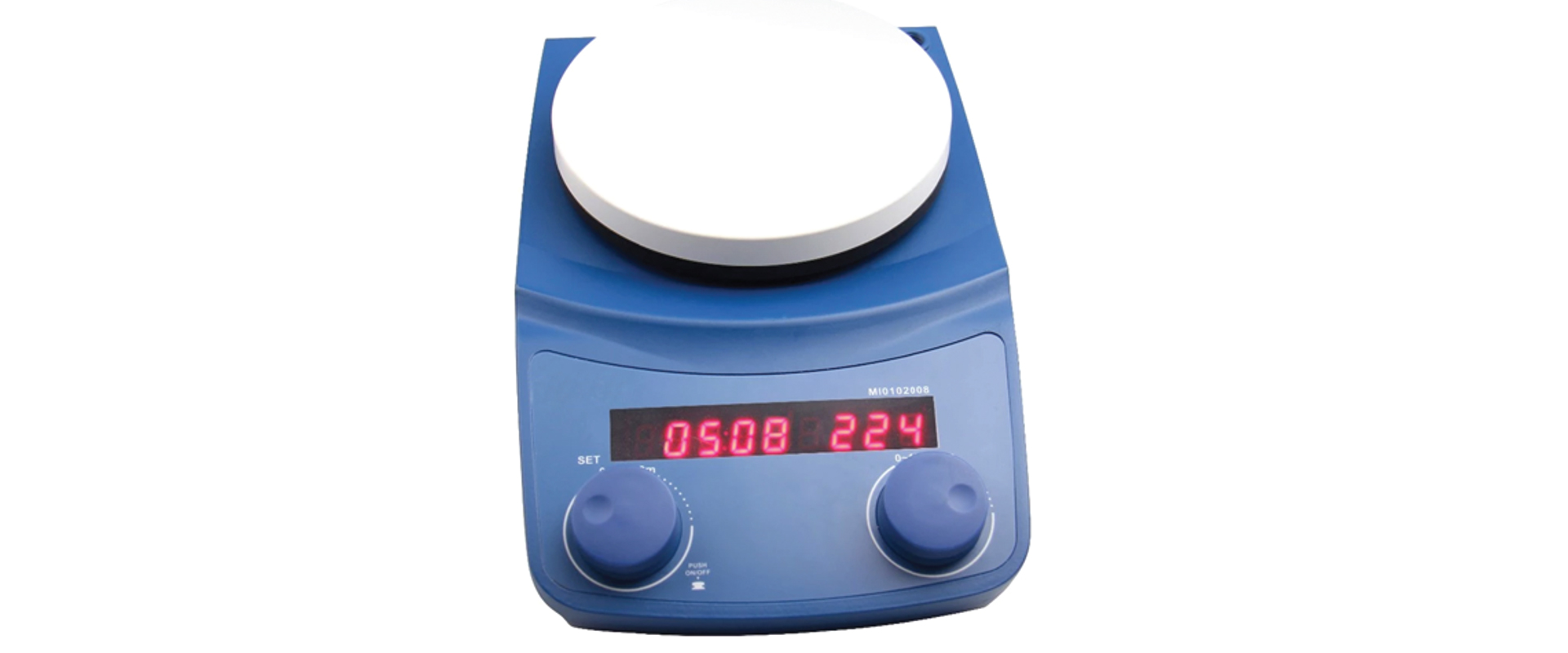

Bionova 5 Inch Top Round Chemical Magnetic Stirrer with Timer
Features
1. Speed range is 50-1500rpm
2. LED digital display for easy setting and reading
3. Aluminum alloy with ceramic coated working plate is chemical-resistant and scratch-resistant
4. 3D digital wheel adjustment of speed and temperature
5. Digital process timer allows for unsupervised operation and can be set from 1min to 99h59min.
6. Brushless DC motor is maintenance-free and explosion-proof.
| Model | BN15-0102008 |
|---|---|
| Stirring positions | 1 |
| Set-up plate dimensions | 135 mm |
| Set-up plate material | Aluminium alloy with ceramic coated |
| Motor type | Brushless DC motor |
| Max. stirring quantity (H20) [L] | 20 |
| Max. stirring bar [L x null, mm] | 55*10 |
| Motor rating input [W] | 30 |
| Motor rating output [W] | 20 |
| Speed range [rpm] | 50-1500 |
| Speed display | LED |
| Time display | LED |
| Time range | 1 min - 99h59min |
| Permissible ambient temperature ['C] | 5 - 40 |
| Permissible relative humidity | 80% |
| Protection class according to DIN EN 60529 | IP 42 |
| Voltage [VAC] | 200-240/100-120 |
| Frequency [Hz] | 50/60 |
| Power[W] | 40 |
| Dimensions [W x D x H, mm] | 250 X 148 X 85 |
| Weight | 1.7 kg |
