Trans-Blotting
Transing-Blotting, a technique that entails immobilisation of proteins or nucleic acids on a solid
membrane support and then detection using a specific antibody or probe of complementary nucleic acid
sequence, significantly increase the potential for identification and characterisation of proteins
and nucleic acids. Upon transfer to a membrane support protein and nucleic acids become far more
accessible to detection by antibodies and probes than they would otherwise be within a gel.
BB-series Trans-Botting products comprises 4 models, including: BN15-ZY2, BN15-ZY3, BN15-ZY5
and BN15-ZV6.

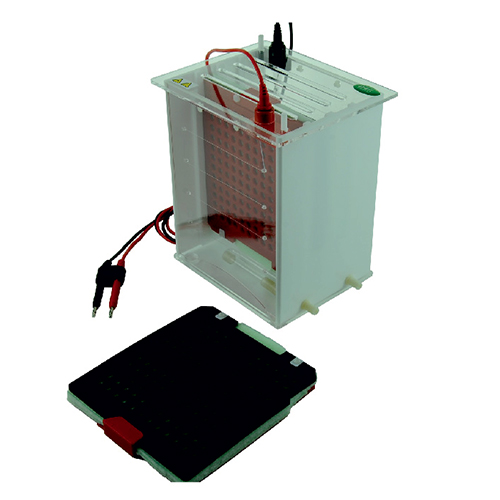

BN15-ZY2 Tank transfer
1. With a cooling device, ensure the transfer blotting more effective.
2. Auto-switch-off when the lid is moved.
| Parts name |
Packing Quantity |
| Body tank with electrode |
1 |
| Transfer splint |
2 |
| Fibre pads |
4 |
| Cooling pack |
1 |
| Cooling pipe |
2 |
| Electrical Cables |
1 |
| Trans area (WXL) |
175x175 (mm) |
| Buffer capacity |
~4000 (ml) |
| Volume (LxWxH) |
205x170x240 (mm) |
| Weight |
2.3 (kg) |

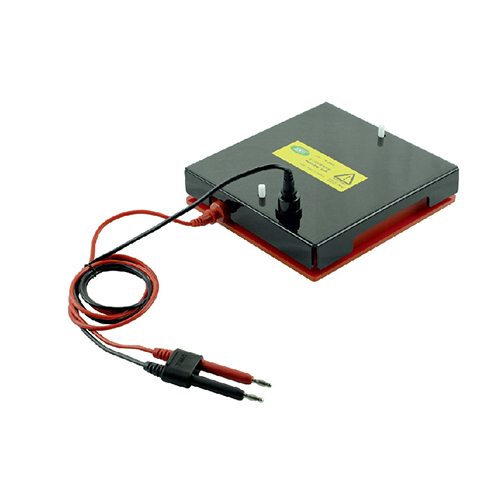

BN15-ZY series Semi-dry transfer
1. Quick transferring, can be completed in 1 hour.
2. Less heat, no need for extra cooling device.
3. Less buffer is needed than the tank transfer.
4. Auto-switch-off when the lid is moved.
| Trans area (W x L) |
140x140 (mm) |
| Volume (L x W x H) |
185x175x40 (mm) |
| Weight |
1.4 (kg) |
| Trans area (W X L) |
240x160 (mm) |
| Volume (L x W x H) |
285x195x40 (mm) |
| Weight |
3.0 (kg) |

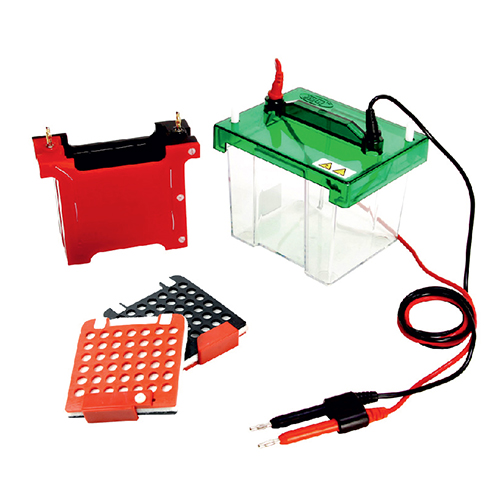

BN15-ZY5 Tank transfer
1. Short distance between two electrodes, greatly saving transferring time.
2. With color mark on the splint, can ensure to put the gel right into the inner core.
3. Removable electrodes make maintance and replacement more easy and quick.
4. The transparent lid effectively prevent liquid volatilizing and electricity leaking.
5. Auto-switch-off when the lid is moved.
6. Not only can be used as a device independent, but also can be used as a module with
the buffer tank of BN15-SCZ2+
| Parts name |
Packing quantity |
| Body tank with electrode |
1 |
| Transfer splint |
2 |
| Fibre pads |
4 |
| Electrical Cables |
1 |
| Trans area (W X L) |
100x100 (mm) |
| Buffer capacity |
~ 750 (ml) |
| Volume (L x W x H) |
150x120x115 (mm) |
| Weight |
0.8 (kg) |

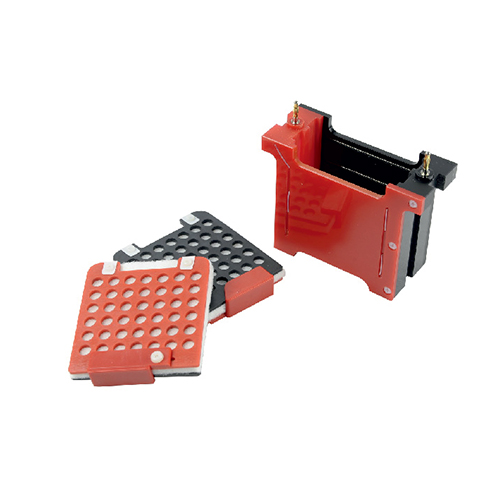

BN15-ZY6 Tank transfer
1. BN15-ZY6 Tank transfer module can be used as module with the buffer tank of BN15-SCZ2+
| Parts name |
Packing quantity |
| Body tank with electrode |
1 |
| Transfer splint |
2 |
| Fibre pads |
4 |
| Trans area (W X L) |
100x100 (mm) |
| Volume (L x W x H) |
139x55x105 (mm) |
| Weight |
0.4 (kg) |
