Transilluminators

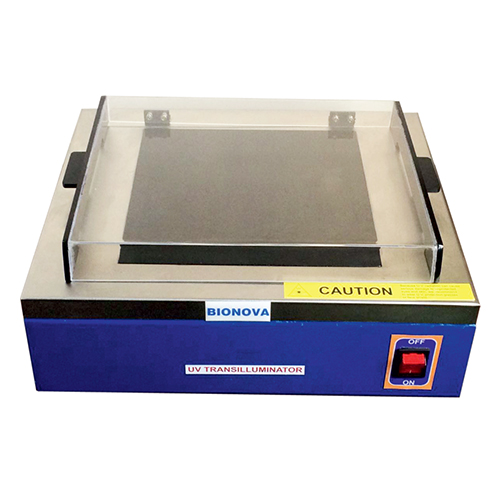

UV Transilluminator Research Model
BN14-TCM1
Bionova range of transilluminators are designed and manufactured to the highest possible specification which find wide applications for DNA analysis. All models have high output UV tubes, which have an average life expectancy of 5000 hours. The UV filters are polished to give blemish free viewing of the gel.
| Model | BN14-TCM1 |
|---|---|
| No. of Tubes | 4+4 |
| Wattage | 8 Watts |
| Wavelenght | 312 & 365nm |
| Detection limit | 0.1 ng |
| Filter area | 20 x 20 cms |
| Body | MS with powder coated. |
| UV Protection shield | Yes |

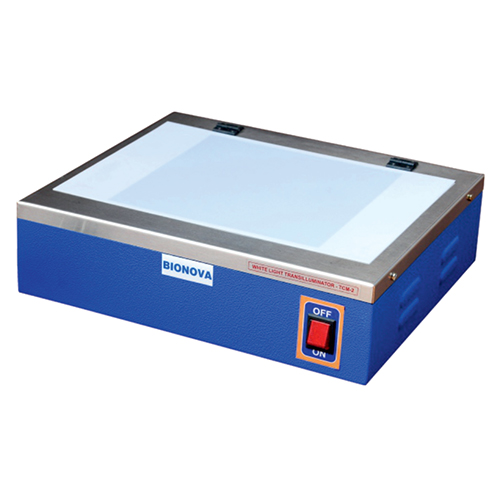

White Light Transilluminator for Protein Analysis
BN14-TCM2
| Model | BN14-TCM2 |
|---|---|
| No. of tubes | 6 |
| Wattage | 8 watts |
| Filter area | 20 x 20 cm |
| Body | MS with powder coated |

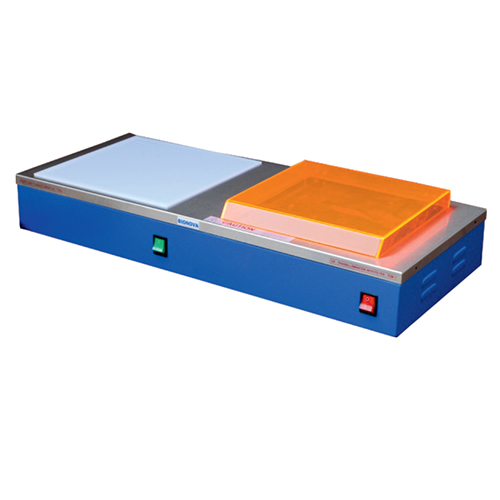

UV and White Light Transilluminator with 302nm
BN14-T21
Bionova range of transilluminators are designed and manufactured to the highest possible specification which find wide applications for DNA analysis. All models have high output UV tubes, which have an average life expectancy of 5000 hours. The UV filters are polished to give blemish free viewing of the gel.
| Model | BN14-T21 |
|---|---|
| Wavelength | White light and 302nm |
| No. of tubes | UV 6 and white light 2 |
| Wattage | 8 wattes |
| Detection limit | 0.1ng of stained DNA |
| Filter area | 20 x 20 cm |
| Body | MS with powder. |
| UV Protection shield | Yes |
