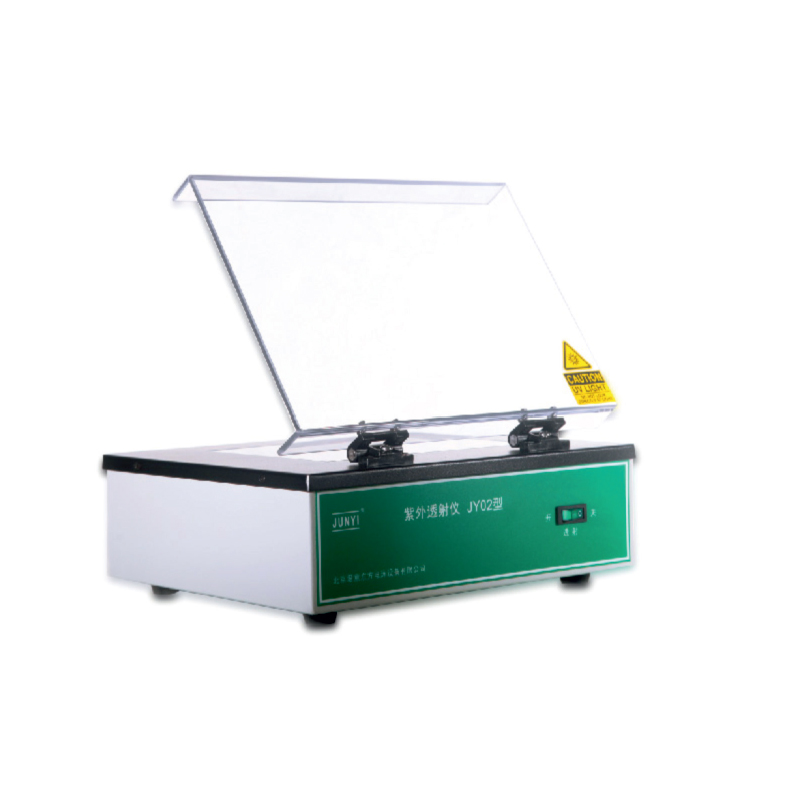

BN15-02 UV Transilluminators
1. The high transparent UV protective screen, can open and close to any angle, safe and
convenient to operation.
2. UV filter glass, quartz ultraviolet lamp, long service life, light uniform
| Transmission size (WxL) | 200x150 (mm) |
| Source ultraviolet wavelength | 302 (nm) |
| Transmission UV lamp power | 8 (W) |
| Volume (LxWxH) | 325x265x150 (mm) |
| Weight | 4.6 (kg) |
| Parts name | Packing quantity |
| Mainframe | 1 |
| 5A insurance tube | 2 |
| Power cord | 1 |

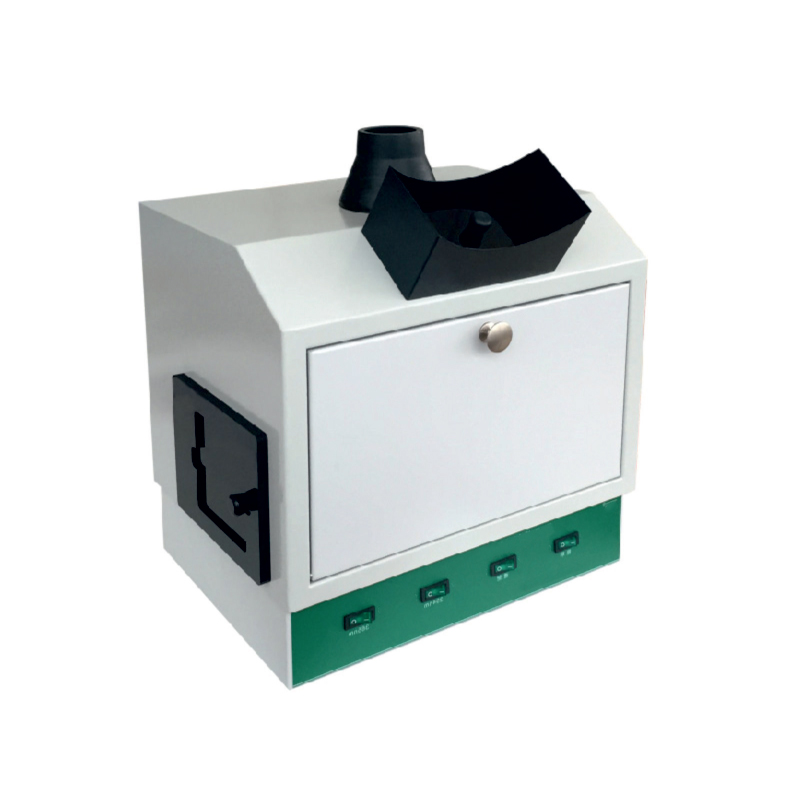

BN15-02S UV Transilluminators
1. No need for darkroom, can be used ub dufferent weather.
2. With the operation exit for cuting the gel.
3. UV filter glass, quartz ultraviolet lamp, durable, light uniform
| Transmission size (WxL) | 200x150 (mm) |
| Transmission UV wavelength | 302 (nm) |
| Reflectance UV wavelength | 254, 365 (nm) |
| Transmission UV lamp power | 302nm (8W) |
| Reflectance UV lamp power | 254nm (11W), 365nm (11W) |
| Volume (LxWxH) | 435x295x490 (mm) |
| Weight | 16.9 (kg) |
| Parts name | Packing quantity |
| Mainframe | 1 |
| Camera bracket | 1 |
| Power connecting wire | 3 |
| 5A insurance tube | 2 |
| Power cord | 1 |
