VERTICAL GEL ELECTROPHORESIS SYSTEMS
We offer a complete range of vertical slab gel electrophoresis systems, suitable for a wide variety of modern electrophoretic techniques. The MINI model answer the demand for small, conventional electrophoresis unit for fast, high resolution protein separations in 8x7cm gel. The REGULAR model is used for electrophoresis in 16x14cm gel. The DUAL models are versatile ones for running two gels, under similar conditions simultaneously. Gels can be cast in three different thickness with the GEL CASTING UNIT, available for both MINI or REGULAR and DUAL models.
Selection guide - Vertical Electrophoresis System
| Specification | Dimensions (lxbxh)cm | Gel Size (cm) | No.of Samples | Buffer Required (ml) | Water Circulation | Cat No. |
|---|---|---|---|---|---|---|
| Vertical Mini Gel System | 15x18x15 | 8x7 (1 gel) | 7 | 100+150 | No | BN14-05-01 |
| Vertical Dual Mini Gel System | 16x20x15 | 8x7 (2 gels) | 14 | 150+200 | Yes | BN14-05-02 |
| Vertical Midi Gel System | 25x20x27 | 16x14 (1 gel) | 13 | 150+200 | No | BN14-05-03 |
| Vertical Dual Midi Gel System | 23x18x27.5 | 16x14 (2 gels) | 26 | 250+500 | Yes | BN14-05-04 |
| Vertical Maxi Gel System | 29x20x21 | 16x20 (1 gel) | 20 | 300+600 | No | BN14-05-05 |
| Vertical Dual Maxi Gel System | 29x22x23 | 16x20 (2 gels) | 40 | 300+700 | Yes | BN14-05-06 |
| Vertical Extra Large Gel System | - | 41x20 (1 gel) | 80 | 600+200 | No | BN14-05-07 |
VERTICAL SYSTEMS

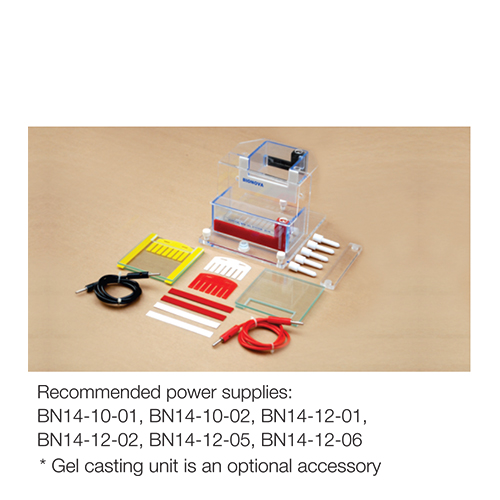

Vertical Mini Gel System
BN14-05-01
The MINI model answers the demand for small, conventional electrophoresis unit for fast, high resolution protein separations in 8 x 7cm gel.
| Model | Mini gel system |
|---|---|
| Cat No. | BN14-05-01 |
| Gel size | 8x7cm |
| Principal Materials | Acrylic |
| Upper tank dimension | 70x60x40mm |
| Inner tank dimension | 130x60x50mm |
| No. of combs | 7 well teflon comb 0.5mm-1No. 7 well teflon comb 1mm-1No. 7 well teflon comb 1.5mm-1No |
| Teflon Spacers | 0.5mm teflon spacer 2 No.s 1mm teflon spacer 2 No.s 1.5mm teflon spacer 2 No.s |
| Connecting Cord | Red and Black (1 Each) |
| No. of Platinum Electrodes | Red and Black (1 Each) |
| Lid | 1 No. |
| Leveling screws | 3 Nos. |
| Glass plate | Notched and Rectangular 2 Sets |
| Gasket | Fixed |
| Clamp and crews | 1 Set. |

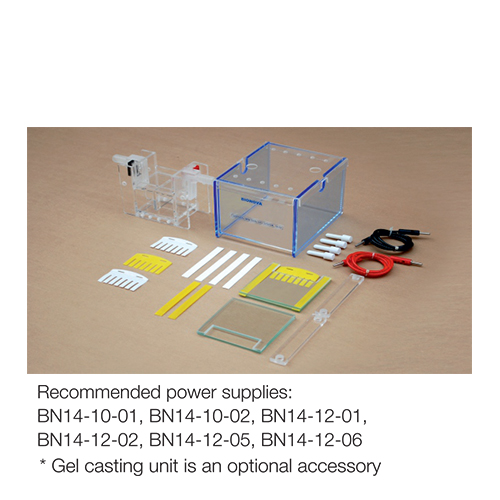

Vertical Dual Mini
BN14-05-02
| Model | Dual Mini gel system |
|---|---|
| Cat No. | BN14-05-02 |
| Gel size | 8x7cms x 2 |
| Principal Materials | Acrylic |
| Upper tank dimension | 70x70x43mm |
| Inner tank dimension | 150x130x115mm |
| No. of combs | 7 well teflon comb 0.5mm-2No. 7 well teflon comb 1mm-2No. |
| Teflon Spacers | 0.5mm teflon spacer 4 No.s 1mm teflon spacer 2 No.s |
| Connecting Cord | Red and Black (1 Each) |
| No. of Platinum Electrodes | Red and Black (1 Each) |
| Lid | 1 No. |
| Glass plate | Notched and Rectangular 2 Sets |
| Gasket | Fixed |
| Clamp and crews | 2 Sets |
| Water circulation | Yes |

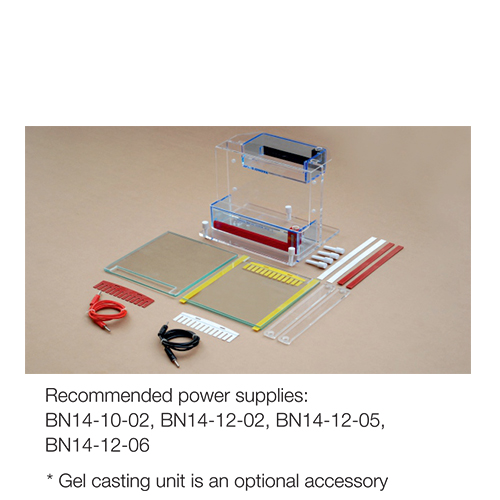

Vertical Midi Gel System
BN14-05-03
| Model | Midi gel system |
|---|---|
| Cat No. | BN14-05-03 |
| Gel size | 16x14cm |
| Principal Materials | Acrylic |
| Upper tank dimension | 140x60x25mm |
| Inner tank dimension | 200x60x60mm |
| No. of combs | 13 well teflon comb 0.5mm-1No. 13 well teflon comb 1mm-1No. 13 well teflon comb 1.5mm-1No. |
| Teflon Spacers | 0.5mm teflon spacers 2 nos. 1mm teflon spacers 2 nos. 1.5mm teflon spacers 2 nos. |
| Connecting Cord | Red and Black (1 Each) |
| No. of Platinum Electrodes | Red and Black (1 Each) |
| Lid | 1 No. |
| Leveling screws | 3 Nos. |
| Glass plate | Notched and Rectangular 2 Sets |
| Gasket | Fixed |
| Clamp and crews | 1 Set |

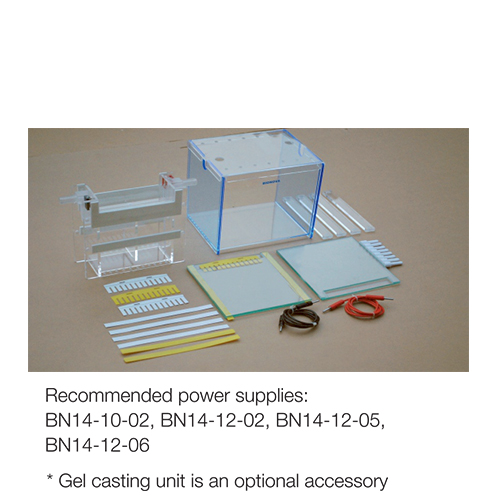

Vertical Dual Midi Gel System
BN14-05-04
| Model | Dual Midi gel system |
|---|---|
| Cat No. | BN14-05-04 |
| Gel size | 16x14cm x 2gels |
| Principal Materials | Acrylic |
| Upper tank dimension | 140x70x20mm |
| Inner tank dimension | 200x160x190mm |
| No. of combs | 13 well teflon comb 0.5mm-2No. 13 well teflon comb 1mm-2No. |
| Teflon Spacers | 0.5mm teflon spacers 4 nos. 1mm teflon spacers 4 nos. |
| Connecting Cord | Red and Black (1 Each) |
| No. of Platinum Electrodes | Red and Black (1 Each) |
| Lid | 1 No. |
| Glass plate | Notched and Rectangular 2 Sets |
| Gasket | Fixed |
| Clamp and crews | 4 Set |

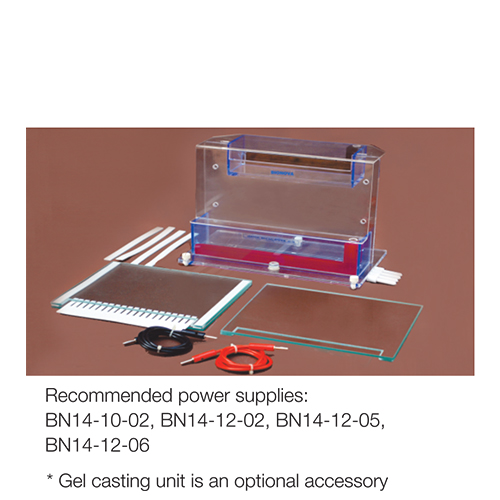

Vertical Maxi Gel System
BN14-05-05
| Model | Maxi gel system |
|---|---|
| Cat No. | BN14-05-05 |
| Gel size | 16x20cm |
| Principal Materials | Acrylic |
| Upper tank dimension | 200x60x25mm |
| Inner tank dimension | 270x60x60mm |
| No. of combs | 20 well teflon comb 1mm-2No. |
| Teflon Spacers | 1mm teflon spacers 6 nos. |
| Connecting Cord | Red and Black (1 Each) |
| No. of Platinum Electrodes | Red and Black (1 Each) |
| Lid | 1 No. |
| Leveling screws | 3 Nos. |
| Glass plate | Notched and Rectangular 2 Sets |
| Gasket | Fixed |
| Clamp and crews | 2 Set |

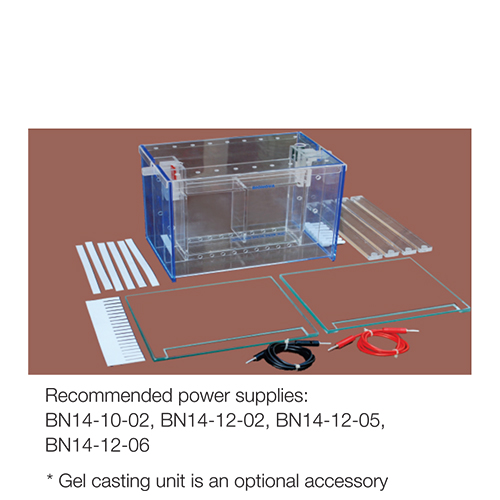

Vertical Dual Maxi Gel System
BN14-05-06
| Model | Dual Maxi gel system |
|---|---|
| Cat No. | BN14-05-06 |
| Gel size | 16x20cms x 2 gels |
| Principal Materials | Acrylic |
| Upper tank dimension | 200x75x20mm |
| Inner tank dimension | 270x100x115mm |
| No. of combs | 20 well teflon comb 1mm-2Nos |
| Teflon Spacers | 1.0 well teflon spacers 6 Nos. |
| Connecting Cord | Red and Black (1 Each) |
| No. of Platinum Electrodes | Red and Black (1 Each) |
| Lid | 1 No. |
| Water Circulation | Yes |
| Glass plate | Notched and Rectangular 2 Sets |
| Gasket | Fixed |
| Clamp and crews | 4 Set |
Ordering Information
| VERTICAL MINI GEL SYSTEM | ||
|---|---|---|
| Pl. No. | Product | Pack Size |
| BN14-05-01 | Vertical Mini Gel System: Mini model gel size (8 x7) cm, (HxW) for 7 samples |
1 Unit |
| VERTICAL DUAL MINI GEL SYSTEM | ||
|---|---|---|
| BN14-05-02 | Vertical Dual Mini Gel System : Mini dual model gel size 2 (8 x 7) cm, (HxW) for 14 samples Accessories for Mini Gel/Mini Dual Gel Systems (8x7)cm gel |
1 Unit |
| BN14-05-01-01 | Glass Plates (Notched and Rectangular) for BN14-05-01-10cm x 10 cm (1 Set/Pack) | 1 No. |
| BN14-05-01-02A | Mini Gel Multicaster Unit for 2 Gels (1No./Pack) | 1 No. |
| BN14-05-01-02 | Mini Multiple Gel Casting Unit for 2 gels, Sealant Required (1No,/Pack) | 1 No. |
| BN14-05-01-03 | 7 Well Teflon Comb for BN14-05-01- 0.5 mm (1No,/Pack) | 1 No. |
| BN14-05-01-14 | 7 Well Teflon Comb for BN14-05-01- 0.75 mm (1No,/Pack) | 1 No. |
| BN14-05-01-04 | 7 Well Teflon Comb for BN14-05-01- 1.0 mm (1No./Pack) | 1 No. |
| BN14-05-01-05 | 7 Well Teflon Comb for BN14-05-01-1.5 mm (1No./Pack) | 1 No. |
| BN14-05-01-11 | 10 Well Teflon Comb for BN14-05-01-0.5 mm (1No,/Pack) | 1 Pack |
| BN14-05-01-15 | 10 Well Teflon Comb for BN14-05-01-0.75 mm (1No./Pack) | 1 Pack |
| BN14-05-01-12 | 10 Well Teflon Comb for BN14-05-01- 1.0 mm (1No./Pack) | 1 Pack |
| BN14-05-01-13 | 10 Well Teflon Comb for BN14-05-01- 1.5 mm (1No,/Pack) | 1 Pack |
| BN14-05-01-06 | 0.5 mm Teflon Spacers for BN14-05-01- (6Nos,/Pack) | 1 Set |
| BN14-05-01-16 | 0.75 mm Teflon Spacers for BN14-05-01- (6Nos./Pack) | 1 No |
| BN14-05-01-07 | 1.0 mm Teflon Spacers for BN14-05-01- (6Nos./Pack) | 1 Pack |
| BN14-05-01-08 | 1.5 mm Teflon Spacers for BN14-05-01- (6Nos,/Pack) | 1 Pack |
| BN14-05-01-09 | Acrylic Clamp (1No.) and Screws (2Nos.) for BN14-05-01 | 1 Pack |
| BN14-05-01-10 | Gel Developing Tray with Gel Holder-8cm x 7 cm (1No./Pack) | 1 Unit |
| BN14-EL-05-01 | Spare Electrodes (red and black) for BN14-05-01 (1 Each) | 1 Set |
| BN14-CC-1 | Connecting Cord red and black (1 each) | 1 No. |
| VERTICAL MIDI GEL SYSTEM | ||
|---|---|---|
| BN14-05-03 | Vertical Midi Gel System: Regular model gel size (16 x 14) cm, (HxW) for 13 samples | 1 Unit |
| VERTICAL DUAL MIDI GEL SYSTEM | ||
|---|---|---|
| BN14-05-04 | Vertical Dual Midi Gel System: Regular dual model gel size 2 (16 x 14) cm, (HxW) for 26 samples |
1 Unit |
| VERTICAL DUAL MIDI GEL SYSTEM | ||
|---|---|---|
| BN14-05-04 | Vertical Dual Midi Gel System: Regular dual model gel size 2 (16 x 14) cm, (HxW) for 26 samples | 1 Unit |
| ACCESSORIES FOR VERTICAL MIDINERTICAL DUAL MIDI GEL SYSTEMS (16 X 14) CM GEL | ||
|---|---|---|
| BN14-05-03-01 | Glass Plates (Notched and Rectangular) For BN14-05-03 and BN14-05-04-19cm x 17.5cm (1 Set/Pack) | 1 Pack |
| BN14-05-03-02 A | Midi Gel Multicaster Unit for 2 Gels-(1No./Pack) | 1 Pack |
| BN14-05-03-02 | Midi Multiple Gel Casting Unit for 2 Gels, Sealant Required (1No,/Pack)(not required if BN14-05-03-02 A is purchased) | 1 Pack |
| BN14-05-03-03 | Gel Developing Tray with Gel Holder For BN14-05-03 and BN14-05-04-16cmx14cm (1No./Pack) | 1 No. |
| ACCESSORIES FOR VERTICAL MIDI / VERTICAL DUAL MIDI GEL SYSTEMS (16 X 14) CM GEL | ||
|---|---|---|
| Pl. No. | Product | Pack Size |
| BN14-05-03-04 | Gradient maker, total capacity 25 + 25 ml | 1 pack |
| BN14-05-03-05 | 13 Well Teflon Comb for BN14-05-03 & BN14-05-04 - 0.5 mm (1No./pack) | 1 No. |
| BN14-05-03-06 | 13 Well Teflon Comb for BN14-05-03 & BN14-05-04-1.0 mm (1No./pack) | 1 No. |
| BN14-05-03-07 | 13 Well Teflon Comb for BN14-05-03 & BN14-05-04-1.5 mm (1No,/pack) | 1 No. |
| BN14-05-03-08 | 0.5 mm Teflon Spacers for BN14-05-03 & BN14-05-04 - (6Nos,/pack) | 1 No. |
| BN14-05-03-09 | 1.0 mm Teflon Spacers for BN14-05-03 & BN14-05-04 - (6Nos,/pack) | 1 No. |
| BN14-05-03-10 | 1.5 mm Teflon Spacers for BN14-05-03 & BN14-05-04 - (6Nos./pack) | 1 No. |
| BN14-05-03-12 | 3 Well Preparative Acrylic Comb For BN14-05-03 & BN14-05-04- 3.0 mm (1No./Pack) | 1 No. |
| BN14-05-03-14 | Acrylic Clamp (1 No.) and Screws (2Nos.) for BN14-05-03 & BN14-05-04 | 1 No. |
| BN14-05-03-15 | Levelling Screws (3 Nos./Pack) | 1 No. |
| BN14-CC-1 | Connecting Cord (2 Nos/Pack) | 1 No. |
| BN14-CC-2 | Adapter Set (2 mm / 4 mm) for Imported Power Supply (1 No./Pack) | 1 No. |
| VERTICAL MAXI GEL SYSTEM | ||
|---|---|---|
| BN14-05-05 | Vertical Maxi Gel System : Large model gel size (16 x 20) cm, (HxW) for 20 samples | 1 Unit |
| VERTICAL DUAL MAXI GEL SYSTEM | ||
|---|---|---|
| BN14-05-06 | Vertical Dual Maxi gel System: Large Dual model gel size 2 (16 x 20) cm, (HxW) for 40 samples |
1 Unit |
| ACCESSORIES FOR MAXI GEL/DUAL MAXI GEL SYSTEM (16 X 20) CM GEL | ||
|---|---|---|
| BN14-05-06-01 | Glass Plates (Notched and Rectangular) For BN14-05-05 and BN14-05-06-19cm x 24cm (1 Set/pack) |
1 Set |
| BN14-05-06-02 | Maxi Multiple Gel Casting Unit for 2 Gels, Sealant Required (1No./pack) (not required if BN14-05-06-02Ais purchased) |
1 No |
| BN14-05-06-02A | Maxi Gel Multicaster Unit for 2 Gels (1No./Pack) | 1 No |
| BN14-05-06-03 | Gel Developing Tray with Gel Holder-25cm x 23.5cm (1No./pack) | 1 No |
| BN14-05-06-04 | 20 Well Teflon Comb for BN14-05-05 & BN14-05-06 - 0.5mm (1No./Pack) | 1 No |
| BN14-05-06-05 | 20 Well Teflon Comb for BN14-05-05 & BN14-05-06 - 1.0mm (1No./Pack) | 1 No |
| BN14-05-06-06 | 20 Well Teflon Comb for BN14-05-05 & BN14-05-06 - 1.5mm (1No./Pack) | 1 No |
| BN14-05-06-07 | 0.5 mm Teflon Spacers for BN14-05-05 & BN14-05-06 (6Nos./Pack) | 1 No |
| BN14-05-06-08 | 1.0 mm Teflon Spacers for BN14-05-05 & BN14-05-06 (6Nos,/Pack) | 1 No |
| BN14-05-06-09 | 1.5 mm Teflon Spacers for BN14-05-05 & BN14-05-06 (6Nos,/Pack) | 1 No |
| BN14-05-06-10 | Acrylic Clamp (1No.) and Screws (2Nos.) for BN14-05-05 & BN14-05-06 | 1 No |
| BN14-EL-05-05 | Spare Electrodes (red and black) for BN14-05-05 (1 Each) | 1 No |
